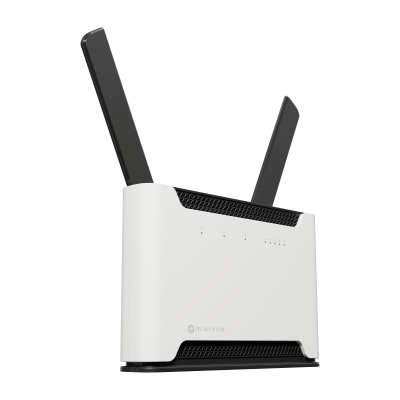

Chateau LTE6 ax
The Chateau LTE6 ax is a high-performance home and office access point featuring a CAT6 LTE modem, Gen6 802.11ax wireless, and a quad-core ARM CPU. It offers faster speeds, better responsiveness, and extensive features for modern connectivity needs, ideal for large households or medium offices.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The Chateau LTE6 ax is a next-generation mobile internet solution for households and small businesses. Designed with a supercharged quad-core ARM CPU running at 1.8 GHz, it can handle demanding tasks such as VPN tunnels, advanced firewall rules, and container apps. Its Gen6 802.11ax wireless standard provides up to 40% higher speed in 5 GHz and 90% higher speed in 2.4 GHz compared to previous models.
With its dual-band wireless, it solves interference issues in busy environments, while the inclusion of a 2.5 Gigabit Ethernet port expands connectivity options for high-speed ISP connections or devices like media servers. The CAT6 LTE modem supports carrier aggregation for consistent speeds of up to 300 Mbps, ideal for areas with many LTE users or weak signals.
Key Features:
- Powerful Quad-Core CPU: Handles advanced tasks effortlessly.
- Gen6 AX Wireless: Faster, more responsive, and ideal for high-density environments.
- Dual-Band Wi-Fi: Enhanced speed and stability.
- 2.5 Gigabit Ethernet: Ultra-fast connectivity for modern devices.
- CAT6 LTE Modem: Carrier aggregation for improved performance.
- RouterOS: Enterprise-grade features with consumer-level simplicity.
Deployment Solutions:
- Rural Internet Access: Replace limited LTE routers for fast and stable connectivity.
- Medium-Sized Offices: Secure and scalable solutions for team networking and VPNs.
- Backup Connectivity: LTE as a secondary internet source for uninterrupted service.
Industries Benefiting:
- Residential Internet Users
- Remote and Rural Businesses
- Telecommunications and ISPs
- Mobile Network Operators
Ethernet test results
S53UG+5HaxD2HaxD-TC&FG621-EA | IPQ-6010 All port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 219.2 | 2662 | 593.5 | 2430.9 | 1509.2 | 821 |
Bridging | 25 bridge filter rules | 218.1 | 2649.1 | 460.3 | 1885.3 | 468.5 | 254.9 |
Routing | none (fast path) | 218.9 | 2657.8 | 596.6 | 2443.6 | 1228.3 | 668.2 |
Routing | 25 simple queues | 218.5 | 2653.5 | 463.4 | 1898 | 468.5 | 254.9 |
Routing | 25 ip filter rules | 215.3 | 2614.4 | 279.6 | 1145.2 | 281.8 | 153.3 |
IPsec test results
S53UG+5HaxD2HaxD-TC&FG621-EA | IPQ-6010 IPsec throughput | ||||||
Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Single tunnel | AES-128-CBC + SHA1 | 78.4 | 878.1 | 91.9 | 376.4 | 93.6 | 47.9 |
256 tunnels | AES-128-CBC + SHA1 | 50.1 | 561.1 | 55.5 | 227.3 | 58.6 | 30 |
256 tunnels | AES-128-CBC + SHA256 | 50 | 560 | 55.4 | 226.9 | 58.6 | 30 |
256 tunnels | AES-256-CBC + SHA1 | 49.4 | 553.3 | 54.8 | 224.5 | 58.6 | 30 |
256 tunnels | AES-256-CBC + SHA256 | 49.4 | 553.3 | 55 | 225.3 | 58.6 | 30 |
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
- Product code
- S53UG+5HaxD2HaxD-TC&FG621-EA
- Architecture
- ARM 64bit
- CPU
- IPQ-6010
- CPU core count
- 4
- CPU nominal frequency
- auto (864 -1800) MHz
- Switch chip model
- IPQ-6010
- RouterOS License
- 4
- Operating System
- RouterOS v7
- Size of RAM
- 1 GB
- Storage size
- 128 MB
- Storage type
- NAND
- MTBF
- -40°C to 70°C
Approximately 200'000 hours at 25C - IPsec hardware acceleration
- Yes
- Number of DC inputs
- 1 (DC jack)
- DC jack input Voltage
- 12-28 V
- Max Power consumption
- 17W
- Max power consumption without attachments
- 13W
- Cooling type
- Passive
- 3G Category
- R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
- 3G bands
- 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- 10/100/1000 Ethernet ports
- 4
- Number of SIM slots
- 1 Modem (Micro SIM)
- Number of USB ports
- 1
- USB Power Reset
- Yes
- USB slot type
- USB type A
- Max USB current (A)
- 1
- Voltage Monitor
- Yes
- PCB temperature monitor
- Yes
- Wireless 2.4 GHz Max data rate
- 574 Mbit/s
- Wireless 2.4 GHz number of chains
- 2
- Wireless 2.4 GHz standards
- 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz
- 2
- Wireless 2.4 GHz chip model
- QCN-5022
- Wireless 5 GHz number of chains
- 2
- Wireless 5 GHz standards
- 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz
- 4
- Wireless 5 GHz chip model
- QCN-5052
- LTE Category
- 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
- LTE FDD bands
- 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
- LTE TDD bands
- 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- TAC
- 86335904
- Wireless 5 GHz Max data rate
- 1200 Mbit/s
- Wireless 2.4 GHz generation
- Wi-Fi 6
- Wireless 5 GHz generation
- Wi-Fi 6
- Certification
- CE, EAC, ROHS
- Mode button
- Yes
- Number of 2.5G Ethernet ports
- 1
- IP
- 20
