RBM33G

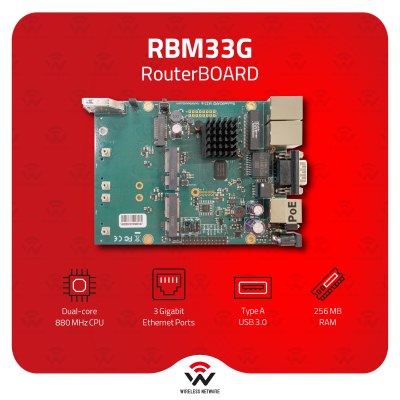

RBM33G: A powerful OEM RouterBOARD with three Gigabit Ethernet portstwo miniPCIe slots, and robust expansion capabilities. Perfect for custom enclosures and versatile networking setups, including multiple 3G/LTE modem configurations.

US$59.00

US$59.00 Tax excluded

Be sure to check availability date
check Available!
US/Canada
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

Compact, Customizable Design

The RBM33G is built for flexibility, designed to fit seamlessly into custom enclosures or bespoke networking solutions. It maintains the same PCB form factor and mounting holes as its predecessors (RB433 and RB953 series).

High-Performance Hardware

  • CPU: Two-core processor running at 880 MHz.
  • Memory256 MB DDR3 RAM ensures smooth operation for complex tasks.
  • Storage Expansion: Includes microSD and PCIe M.2 slots for additional storage.

Multiple Connectivity Options

  • 3x Gigabit Ethernet ports for high-speed wired connections.
  • 2x miniPCIe slots support dual 3G/LTE modems or a combination of LTE and wireless cards for versatile setups.
  • USB 2.0/3.0 port for external devices like a 3G/LTE modem or external hard drive (refer to the product’s Quick Guide for specific configurations).
  • RS232 serial port for console access.

Flexible Powering Options

  • PoE support via a Gigabit Ethernet connector.
  • DC jack for alternative power input.

Use Cases

  1. Mobile Connectivity Solutions

    • Connect two 3G/LTE modems for redundancy or increased throughput.
    • Use a miniPCIe LTE modem and a USB LTE modem for additional flexibility.
  2. Custom Networking Solutions

    • Add an 802.11 wireless card to create a wireless networking solution.
    • Utilize the M.2 and USB ports for storage-heavy applications.
  3. Industrial Applications

    • Perfect for setups requiring reliable RS232 serial communication and multiple interfaces.

Key Features

  • Versatile Connectivity: Ideal for dual 3G/LTE modem configurations or hybrid setups with wireless cards.
  • Customizable Design: Compact and compatible with various enclosures for OEM projects.
  • Storage Expansion: Includes slots for microSD and PCIe M.2 storage.
  • Flexible Powering Options: Supports both PoE and DC jack input.
  • Reliable Console Access: RS232 port for streamlined device management.

Ethernet test results

RBM33G MT7621A (880 MHz) 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kbps Mbps kbps Mbps kbps Mbps
Bridging none (fast path) 162.4 1,972.2 443.7 1,817.4 1039.1 532.0
Bridging 25 bridge filter rules 162.4 1,972.2 168.1 688.5 174.3 89.2
Routing none (fast path) 162.4 1,972.2 444.4 1,820.3 1035.0 529.9
Routing 25 simple queues 162.4 1,972.2 179.6 735.6 171.4 87.8
Routing 25 IP filter rules 92.9 1,128.2 94.1 385.4 93.8 48.0
  1. All tests are done with Xena Networks specialized test equipment (XenaBay) and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration; different configurations most likely will result in lower results

IPsec test results

RBM33G MT7621A IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kbps Mbps kbps Mbps kbps Mbps
Single tunnel AES-128-CBC + SHA1 41.9 469.3 42.3 173.3 41.5 21.2
256 tunnels AES-128-CBC + SHA1 41.9 469.3 43.7 179 42.7 21.9
256 tunnels AES-128-CBC + SHA256 42.2 472.6 44.4 181.9 42.7 21.9
256 tunnels AES-256-CBC + SHA1 32 358.4 40 163.8 40.5 20.7
256 tunnels AES-256-CBC + SHA256 32.1 359.5 39.7 162.6 40.5 20.7
  1. All tests are done with Xena Networks specialized test equipment (XenaBay) and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration; different configurations most likely will result in lower results

MikroTik
RBM33G
New
49 Items
4752224004246
Product code
RBM33G
Architecture
MMIPS
CPU core count
2
CPU nominal frequency
880 MHz
Size of RAM
256 MB
Storage size
16 MB
Storage type
FLASH
Tested ambient temperature
-40°C to 70°C
Number of DC inputs
2 (PoE-IN, DC jack)
DC jack input Voltage
11-32 V
Max Power consumption
24 W
Max power consumption without attachments
19 W
PoE in
Passive PoE
PoE in input Voltage
11-32 V
10/100/1000 Ethernet ports
3
Number of SIM slots
2 Modem (Mini SIM)
Serial port
RS232
Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB 3.0 type A
Max USB current (A)
1
MiniPCI-e slots
2
CPU Threads count
4
M.2 slots
1
