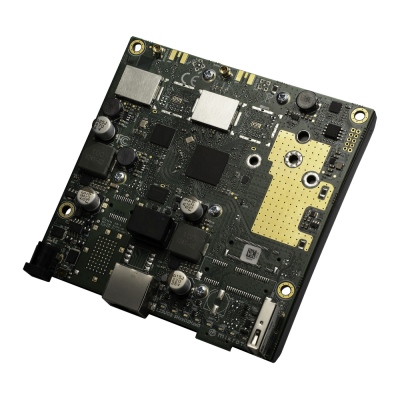

L11UG-5HaxD: Build Custom Outdoor CPEs or APs with Wi-Fi 6
zoom_out_map
chevron_left chevron_right
Contact us for back-order

L11UG-5HaxD

Build your own custom outdoor 5 GHz CPE or AP with the latest Wi-Fi 6 technology! The L11UG-5HaxD offers a versatile solution for crafting low-cost, high-performance outdoor access points or customer-premises equipment (CPE). With a powerful dual-core Qualcomm ARM CPUMMCX connectors, and PoE-in Gigabit Ethernet, this tiny board is perfect for creating custom solutions.

US$79.00 Tax excluded

US$79.00 Tax excluded

block Contact us for back-order
US/Canada
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

Key Features

  • Wi-Fi 6 Radio:

    • Advanced 802.11ax wireless technology for improved speed, range, and efficiency.
  • MMCX Connectors for Customization:

    • Pair with external antennas like HGO-antenna-OUT for omnidirectional coverage or mANT30 PA for long-range point-to-point links.
  • Powerful Hardware:

    • Qualcomm Maple ARM dual-core CPU, 256 MB of RAM, and a Gigabit Ethernet port with PoE-in for reliable performance.
  • Flexible Design:

    • Integrates seamlessly into vending machines, ATMs, ticket stations, and other applications.
    • Compatible with reusable aluminum cases from the RB411, 911, 912, and 922 series for standalone builds.
  • Bonus Features:

    • Includes a beeper for alarms or creative outputs.

Use Cases

  1. Custom Outdoor CPEs:

    • Create cost-effective solutions for customer premises with high-speed Wi-Fi 6.
  2. Omnidirectional APs:

    • Add an HGO-antenna-OUT for wide area coverage in outdoor or industrial setups.
  3. Point-to-Point Links:

    • Use with mANT30 PA antenna for long-range connections in challenging environments.
  4. Vending Machines & IoT Applications:

    • Integrate into smart vending machines, ticket stations, or ATMs.
  5. Standalone Build:

    • Pair with reusable aluminum cases for independent applications.

Why Choose L11UG-5HaxD?

  • Cost-Effective Customization: Build tailored solutions without breaking the bank.
  • Future-Ready: Leverage Wi-Fi 6 for better performance in high-density environments.
  • Eco-Friendly: Reuse existing cases to reduce waste and save costs.
  • Versatile Applications: Adaptable to a wide range of scenarios, from industrial to residential setups.

MikroTik
L11UG-5HaxD
Product code
L11UG-5HaxD
Architecture
ARM
CPU
IPQ-5010
CPU core count
2
CPU nominal frequency
800 MHz
Operating System
RouterOS v7
Size of RAM
256 MB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 100'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
Number of DC inputs
2 (PoE-IN, DC jack)
DC jack input Voltage
12-28 V
Max Power consumption
15 W
Max power consumption without attachments
6 W
Cooling type
Passive
PoE in
Passive PoE
PoE in input Voltage
18-28 V
10/100/1000 Ethernet ports
1
Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB type A
Max USB current (A)
1.5
Voltage Monitor
Yes
PCB temperature monitor
Yes
Wireless 5 GHz number of chains
2
Wireless 5 GHz standards
802.11a/n/ac/ax
Wireless 5 GHz chip model
QCN-6102
Wi-Fi generation
Wi-Fi 6
Wireless 5 GHz Max data rate
2400 Mbit/s
Certification
CE, FCC, IC, EAC, ROHS
