L23UGSR-5HaxD2HaxD: Build Custom Wi-Fi 6 Outdoor APs or CPEs
zoom_out_map
chevron_left chevron_right
Contact us for back-order

L23UGSR-5HaxD2HaxD

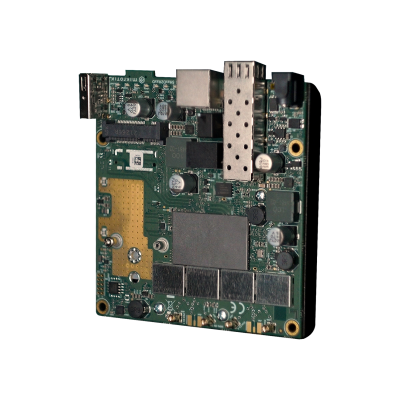

The L23UGSR-5HaxD2HaxD is a versatile and modular wireless router designed for custom outdoor Wi-Fi 6 access points or customer premises equipment (CPEs). With its advanced features, robust performance, and extensive customization options, this device is perfect for home, office, and professional setups.

US$99.00 Tax excluded

US$99.00 Tax excluded

block Contact us for back-order
US/Canada
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

Key Features

Next-Generation Wi-Fi 6 Technology

  • Dual-band, dual-chain Wi-Fi 6 radio for superior speed, stability, and security.
  • Improved roaming, power management, and network efficiency compared to previous wireless protocols.
  • Capable of achieving distances up to 30 kilometers with appropriate antenna setups.*

Unparalleled Customization

  • MMCX Connectors: Use with a wide range of antennas for omnidirectional or long-range point-to-point links.
  • MiniPCIe Slot: Add LTE modems or other expansion cards like LoRa IoT gateways.
  • NanoSIM Slot: Provides mobile internet backup for reliable connectivity.

High-Performance Hardware

  • Powered by a modern Qualcomm Maple ARM CPU for robust performance.
  • Gigabit Ethernet Port with PoE-in: Simplifies power and connectivity.
  • 2.5 Gigabit SFP Port: Ideal for high-speed fiber connections.
  • USB Port: Expand storage or integrate additional peripherals.

DIY Enthusiast Friendly

  • Build custom solutions for outdoor access points, CPEs, vending machines, or ticket stations.
  • Compatible with MikroTik's open licensing model—no subscriptions or hidden costs.

Built for Advanced Users

  • Perfect for professionals seeking to craft unique networking solutions with full control over hardware.
  • Integrated beeper for alarms or creative outputs.

Specifications

Specification Details
CPU Qualcomm Maple ARM
Ethernet 1x Gigabit Ethernet with PoE-in
Wireless Dual-band Wi-Fi 6
SFP 2.5 Gigabit SFP
MiniPCIe Slot Yes
SIM Support NanoSIM for LTE backup
Antenna Connectors 4x MMCX
USB Port Yes
Power Input PoE-in or DC power
OS MikroTik RouterOS

Use Cases

  1. Custom Outdoor Access Points:
    Build low-cost, high-performance APs for outdoor use, perfect for long-range connectivity.

  2. CPE Solutions:
    Craft unique, modular customer premises equipment for ISPs or private networks.

  3. Industrial Applications:
    Integrate into vending machines, kiosks, or IoT gateways for advanced connectivity.

  4. DIY Networking Enthusiasts:
    Ideal for homelabs or custom projects with extensive flexibility and control.


Customization Options

  • Add HGO-antenna-OUT for omnidirectional setups.
  • Pair with mANT30 PA antenna for high-powered long-range links.
  • Expand functionality with LTE modems, LoRa IoT modules, or additional storage.

Ethernet test results

L23UGSR-5HaxD2HaxD IPQ-5010 two port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 274.6 3334.7 348 1425.6 591.2 302.6
Bridging 25 bridge filter rules 203.8 2474.4 210.5 862.3 213.5 116.2
Routing none (fast path) 280 3399.9 470.8 1928.3 425.6 217.9
Routing 25 simple queues 200.2 2431 201.7 826 211.3 108.2
Routing 25 ip filter rules 140.6 1707.3 145.5 595.9 145.4 74.5
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

MikroTik
L23UGSR-5HaxD2HaxD
New
4752224004246
Product code
L23UGSR-5HaxD2HaxD
Architecture
ARM
CPU core count
2
CPU nominal frequency
800 MHz
Size of RAM
256 MB
Storage size
128 MB
Storage type
NAND
Tested ambient temperature
-40°C to 70°C
Number of DC inputs
2 (PoE-IN, DC jack)
DC jack input Voltage
12-28 V
Max Power consumption
25 W
Max power consumption without attachments
12 W
PoE in
Passive PoE
PoE in input Voltage
12-28 V
10/100/1000 Ethernet ports
1
Number of SIM slots
1 Modem (Nano SIM)
Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB type A
Max USB current (A)
1.5
Wireless 2.4 GHz Max data rate
574 Mbit/s
2400 Mbit/s
Wireless 2.4 GHz number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n/ax
Wireless 2.4 GHz chip model
IPQ-5010
Wireless 5 GHz number of chains
2
Wireless 5 GHz standards
802.11a/n/ac/ax
Wireless 5 GHz chip model
QCN-6102
MiniPCI-e slots
1
Wireless 2.4 GHz generation
Wi-Fi 6
Wireless 5 GHz generation
Wi-Fi 6
Fiber Type
1 (2.5G supported)
