MikroTik GPERx6 Outdoor Hybrid Fiber PoE Switch DC
The MikroTik GPERx6 (CSS606-1G-2Gi-3S+OUT) is a rugged IP66 outdoor switch purpose-built for deployments where running separate power and data cables over long distances is impractical. Using hybrid fiber + copper cables, it carries 10G fiber data and DC power simultaneously over distances of 1–2 km — then splits them at the far end into 3× 10G SFP+ uplinks, 2× Gigabit Ethernet PoE-out ports, and 3× DC outputs for IoT gear and devices that do not support PoE. Built for perimeter surveillance, remote CCTV towers, solar-powered edge sites, and industrial campuses where every cable run matters.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik GPERx6 (CSS606-1G-2Gi-3S+OUT) solves a problem that every outdoor network installer knows well: long cable runs with too many cables, too many junction boxes, and too many potential failure points. The GPERx6 collapses all of that into a single hybrid cable deployment — fiber for data, copper for power — and handles the splitting at the far end so connected devices get exactly what they need.

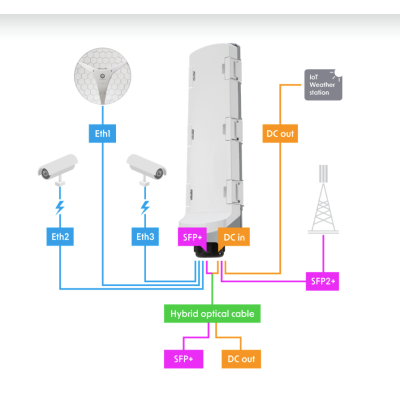

The concept is simple but the application is powerful. Run a single hybrid fiber + copper cable from your head-end to a remote camera tower, perimeter post, or IoT cabinet 1–2 km away. The GPERx6 at the far end terminates that cable and distributes: 10G fiber goes to SFP+ cages for high-speed uplinks or further fiber runs; DC power feeds the Passive PoE outputs for cameras and access points; and the 3× DC output ports handle IoT sensors, specialized hardware, or any device that does not use PoE. One cable. One device. Everything connected.
The 88E6193X switch chip — the same chip proven in the netPower Lite 7R — handles switching without CPU overhead. The IP66-rated enclosure, passive cooling, and -40°C to +70°C operating range ensure the GPERx6 performs in industrial, coastal, agricultural, and extreme-climate environments without compromise.
Key features:
- 3× 10G SFP+ cages — long-distance fiber uplinks or further fiber extension
- 3× 10/100/1000 Mbps Gigabit Ethernet — Ether1 with Reverse PoE-in (802.3bt, 42–57V), Ether2–Ether3 with Passive PoE-out (up to 57V)
- Passive PoE-out — low voltage limit 1.2A, high voltage limit 0.625A, total PoE output 150W
- 3× DC outputs — power IoT devices, sensors, and non-PoE hardware directly
- Dual DC inputs — DC jack (12–57V) and PoE-in (802.3bt, 42–57V)
- Hybrid fiber + copper cable support — carry data and DC power over a single cable up to 1–2 km
- Dedicated 88E6193X 10G switch chip — proven, wire-speed switching without CPU overhead
- SwOS — simple, fast, and efficient switch management with free lifetime updates
- Passive cooling, -40°C to +70°C, max power consumption 160W (6W without attachments)
- MTBF ~200,000 hours at 25°C
- CPU temperature monitoring
- Certified CE, EAC, RoHS | IP66
In the box: K-93 fastening set, 2× hose clamps.
Ideal for: perimeter surveillance on large campuses, estates, industrial parks, and ports; remote CCTV towers and pole-mounted camera systems; solar-powered edge networking sites; IoT sensor deployments in agricultural or utility environments; and any outdoor installation where minimizing cable runs between 100m and 2km is critical to cost and reliability.
- Product code
- CSS606-1G-2Gi-3S+OUT
- Switch chip model
- 88E6193X
- Operating System
- SwOS
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 2 (PoE-IN, DC jack)
- DC jack input Voltage
- 12-57 V
- Max Power consumption
- 160 W
- Max power consumption without attachments
- 6 W
- Cooling type
- Passive
- PoE in
- 802.3 bt
- PoE in input Voltage
- 42-57 V
- PoE out ports
- Ether2-Ether3
- PoE out
- Passive PoE up to 57V
- Max total out (A)
- 2.4 A
- Total output power
- 150
- 10/100/1000 Ethernet ports
- 3
- SFP+ ports
- 3
- CPU temperature monitor
- Yes
- Certification
- CE, EAC, ROHS
- Number of 1G Ethernet ports
- 1
- IP
- 66
- Number of 1G Ethernet ports with PoE-out
- 2
