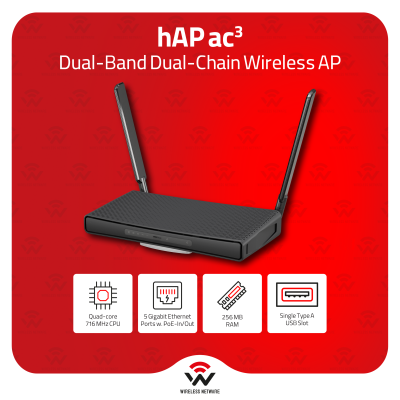

MikroTik hAP ac3 Dual-Band Wi-Fi 5 Home Router
The MikroTik hAP ac3 (RBD53iG-5HacD2HnD) is a dual-band 802.11ac Wave 2 home router — IPQ-4019 quad-core MIPS at 716 MHz, 128 MB RAM, 16 MB flash, RouterOS v7 License 4, 5× GbE (Ether1 WAN + Ether2–5 LAN switch), 2.4 GHz 802.11b/g/n 3×3 MIMO (300 Mbps) + 5 GHz 802.11ac Wave 2 3×3 MIMO (867 Mbps), 6 internal antennas, USB 2.0 type A, PoE-out on Ether5 (up to 57V passthrough), passive cooling, 198 × 123 × 30 mm, -40°C to +70°C, MTBF ~100,000 hours at 25°C. CE, FCC, IC, EAC, RoHS. Includes 24V 1.2A power adapter.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik hAP ac3 is a dual-band 802.11ac Wave 2 home router at USD 79.00 — IPQ-4019 quad-core MIPS at 716 MHz with 5× GbE, concurrent 2.4 GHz and 5 GHz Wi-Fi, USB 2.0, and passive PoE-out on Ether5, running RouterOS v7 License 4 in a passively cooled desktop enclosure.
**Dual-band 802.11ac Wave 2 — 2.4 GHz + 5 GHz concurrent**
2.4 GHz 802.11b/g/n 3×3 MIMO at up to 300 Mbps and 5 GHz 802.11ac Wave 2 3×3 MIMO at up to 867 Mbps — both radios active simultaneously. 6 internal antennas — no external antenna connectors. Suitable for mixed-device home and small office environments where legacy 2.4 GHz clients and modern 5 GHz devices coexist on the same router.
**5× GbE — dedicated WAN + 4-port LAN switch**
Ether1 is the WAN port. Ether2–5 form a hardware-switched 4-port GbE LAN. Ether5 supports passive PoE-out at up to 57V passthrough — powers a downstream MikroTik AP or PoE camera directly from the router without a separate PoE injector.
**USB 2.0 — LTE modem failover or storage**
USB 2.0 type A port supports LTE modem attachment for WAN failover scripting via RouterOS, or USB storage mounting for simple NAS or syslog functions.
**IC certified — Canadian market ready**
CE, FCC, IC, EAC, RoHS — confirmed ISED certification for compliant commercial sale and deployment of wireless devices across Canada. Dual-band Wi-Fi router — IC certification is mandatory for Canadian retail listing.
**Includes:** 24V 1.2A power adapter.
- Product code
- RBD53iG-5HacD2HnD
- CPU
- 4 core IPQ-4019 716 MHz
- Operating System
- RouterOS, License level 4
- Size of RAM
- 256MB
- Storage size
- 128MB NAND
- Max Power consumption
- 30W
- Max power consumption without attachments
- 12W
- PoE in
- Passive PoE
- PoE in input Voltage
- DC jack (12 - 28 V) PoE-in (18-28 V)
- PoE out
- 1
Passive PoE - Wireless AP
- 2.4 GHz 802.11 b/g/n dual-chain, 5 GHz 802.11 a/n/ac dual-chain
- Dimensions
- 251 x 129 x 39 mm
- Number of USB ports
- 1 USB port type A
- Operating Temperature
- -40°C to +70°C
- Antenna gain
- 2.4 GHz (3 dBi), 5 GHz (5.5 dBi)
- Wireless regulations
- Specific frequency range and power will be limited by country regulations
- Antenna beam width
- 360 degree
- Certification
- CE, FCC, IC
- Number of 1G Ethernet ports
- 5
