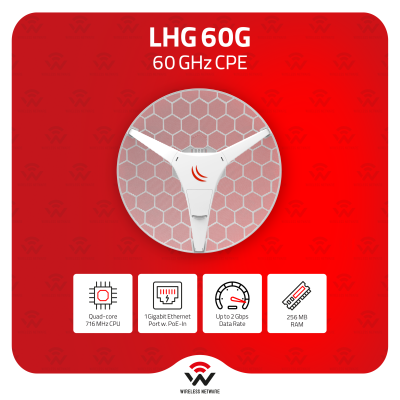

MikroTik LHG 60G 60GHz P2MP CPE 800m Outdoor
The MikroTik LHG 60G is a high-speed outdoor 60 GHz CPE unit designed for Point-to-Multipoint wireless deployments. Built around the 802.11ad standard, it is purpose-built for environments where 2.4 GHz and 5 GHz spectrum is congested and unreliable, offering an interference-free 60 GHz alternative with data rates up to 2 Gbps. Up to eight LHG 60G units can connect simultaneously to a compatible 60 GHz access point, such as the wAP 60G AP or wAP 60Gx3 AP, with a maximum P2MP range of 800 metres and P2P range of up to 1,500 metres. The unit features a built-in grid antenna, a single Gigabit Ethernet PoE port, passive cooling, an IP55 weatherproof enclosure, and an operating temperature range of -40°C to +70°C. It runs RouterOS Level 3 on a quad-core ARM processor.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik LHG 60G (RBLHGG-60ad) is an outdoor 60 GHz CPE device engineered for Point-to-Multipoint (P2MP) wireless links. Operating in the 60 GHz band via the 802.11ad standard, it sidesteps the spectrum congestion common in 2.4 GHz and 5 GHz networks, delivering clean, high-speed connectivity at data rates of up to 2 Gbps. It is designed to be used as a subscriber unit, connecting back to a 60 GHz base station such as MikroTik's wAP 60G AP or wAP 60Gx3 AP, with up to eight LHG 60G units supported per access point.
Range and Antenna The LHG 60G achieves P2MP distances of up to 800 metres and P2P distances of up to 1,500 metres between two units. The antenna element is built directly into the wireless unit, eliminating cable losses. The grid dish design provides structural resistance against wind loads. For precision installation, the unit ships with an Aim tool to assist with exact antenna alignment.
Processing and System The LHG 60G is powered by a Qualcomm IPQ-4019 quad-core ARM 32-bit processor running at 448–896 MHz (auto-scaling), with 256 MB of RAM and 16 MB of FLASH storage. It runs RouterOS Level 3, providing full access to MikroTik's routing, firewall, and management feature set appropriate for a CPE device.
Connectivity The unit includes a single 10/100/1000 Mbps Ethernet port, which also serves as the PoE input, accepting 802.3af/at PoE at 12–57 V. Maximum power consumption is 5 W. A 24V 0.38A power adapter and Gigabit PoE injector are included in the box, along with an LHG mount for installation.
Enclosure and Environmental The LHG 60G carries an IP55 weatherproof rating, making it suitable for permanent outdoor deployment. It is tested and rated for an operating temperature range of -40°C to +70°C, and uses passive cooling with no moving parts.
Certifications CE, FCC, IC, EAC, RoHS.
Key Specifications at a Glance
- Product Code: RBLHGG-60ad
- Architecture: ARM 32bit
- CPU: Qualcomm IPQ-4019, Quad-core, 448–896 MHz (auto)
- RAM: 256 MB
- Storage: 16 MB FLASH
- Operating System: RouterOS
- RouterOS License: Level 3
- Wireless Standard: 802.11ad (60 GHz)
- Max Wireless Data Rate: Up to 2 Gbps
- Max P2MP Range: 800 m (to 60 GHz AP)
- Max P2P Range: 1,500 m (between two LHG 60G units)
- Max Clients per AP: 8
- Ethernet Ports: 1× 10/100/1000 (PoE-IN)
- PoE Input: 802.3af/at, 12–57 V
- Max Power Consumption: 5 W
- Cooling: Passive
- IP Rating: IP55
- Operating Temperature: -40°C to +70°C
- Certifications: CE, FCC, IC, EAC, RoHS
- Included: 24V 0.38A power adapter, Gigabit PoE injector, LHG mount, Aim tool
- Product code
- RBLHGG-60ad
- Architecture
- ARM 32bit
- CPU
- IPQ-4019
- CPU core count
- 4
- CPU nominal frequency
- 716 MHz
- Size of RAM
- 256MB
- Storage size
- 16MB
- Storage type
- FLASH
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 1 (PoE-IN)
- Max Power consumption
- 7W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 12-57 V
- 10/100/1000 Ethernet ports
- 1
