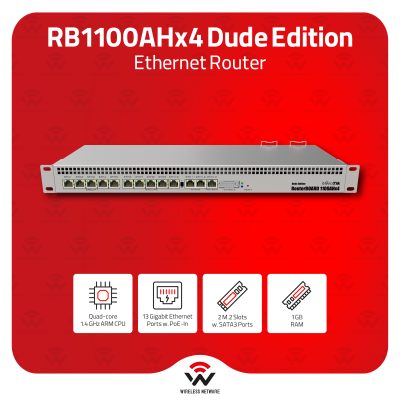

MikroTik RB1100Dx4 13-Port GbE Quad-Core Rackmount Router Dude Edition 60GB M.2 SSD
The MikroTik RB1100Dx4 is a high-performance 1U rackmount router built around the Annapurna Alpine AL21400 quad-core Cortex A15 CPU clocked at 1.4GHz per core, delivering maximum throughput of up to 7.5Gbps and IPsec hardware acceleration reaching up to 2.2Gbps with AES-128. It features thirteen Gigabit Ethernet ports, dual redundant AC power supplies with 802.3af/at PoE-in support and -48V DC telecom power input, and an RS232 serial console port — all in a solid rackmount metal enclosure. The Dude Edition distinction lies in its extensive high-speed storage options: two M.2 slots, two SATA3 ports, and one microSD slot, with a 60GB M.2 SSD included and pre-installed for running The Dude network monitoring tool, proxy cache, or any other storage-intensive RouterOS application.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The RB1100Dx4 is powered by the Annapurna Alpine AL21400 quad-core ARM 32-bit processor, with four Cortex A15 cores running at 1.4GHz each. This is MikroTik's carrier-grade CPU platform, delivering maximum throughput of up to 7.5Gbps across its thirteen Gigabit ports. IPsec hardware acceleration is built in, enabling encrypted tunnel throughput of up to 2.2Gbps using AES-128 — making it faster at IPsec processing than any previous RouterBOARD device at the time of its release. The unit carries 1GB of RAM and 128MB of NAND flash for the RouterOS system, with the RTL8367 switch chip handling hardware-level Ethernet switching.
Ethernet Connectivity
Thirteen 10/100/1000 Mbps Gigabit Ethernet ports provide substantial wired connectivity for core routing, aggregation switching, multi-WAN load balancing, or inter-VLAN routing across large and complex networks. The port count makes it suitable as a primary router for ISP customer edge, enterprise WAN gateway, or network core aggregation without requiring additional switching hardware for most deployments.
The Dude Edition — Expanded Storage
What sets the RB1100Dx4 apart as the "Dude Edition" is its comprehensive high-speed storage subsystem, designed specifically to support The Dude network monitoring application and other storage-intensive RouterOS features. The unit features two M.2 slots, two SATA3 ports, and one microSD slot. A 60GB M.2 SSD is included and pre-installed, ready to host The Dude database, proxy cache, or other data-heavy services. Additional M.2 or SATA drives can be added for expanded capacity or redundancy. SATA cables are included in the box.
Dual Redundant Power Supplies
The RB1100Dx4 features dual redundant AC power inputs, providing power supply failover in the event of a single PSU failure — a critical feature for always-on network infrastructure. It also supports two DC inputs: a 2-pin terminal accepting -48V DC (standard telecom power) or 20–57V DC, and a PoE-in input (802.3af/at) accepting 20–57V. This combination of AC redundancy and telecom-standard DC input makes the unit well suited to carrier and data centre environments with existing -48V DC power plants. Maximum power consumption is 33W (25W without attachments). Two IEC power cords are included.
Passive Cooling
Despite its processing power, the RB1100Dx4 operates entirely passively — no fans — making it silent in operation. This is particularly advantageous in low-noise environments or deployments where fan failure is a reliability concern.
Serial Console and Out-of-Band Management
An RS232 serial console port provides out-of-band management access for recovery, initial configuration, and remote console scenarios, which is standard practice in professional rackmount router deployments.
Monitoring
The unit includes a PCB temperature monitor, voltage monitor, current monitor, and a beeper — giving administrators comprehensive real-time visibility into the hardware's health through RouterOS.
Software
The RB1100Dx4 runs RouterOS with a Level 6 licence — the highest RouterOS licence level — unlocking every RouterOS feature including unlimited tunnels, advanced routing protocols, MPLS, traffic engineering, and the full suite of bandwidth management and firewall tools. The operating system is pre-installed and licenced; no separate purchase is necessary. RouterOS also includes native support for The Dude network monitoring server, which can be run directly from the included 60GB M.2 SSD.
Build and Form Factor
The unit ships in a standard 1U rackmount metal enclosure measuring 443 × 148 × 44mm, with rack ears included for immediate rack installation. A K-57 kit is also included. The tested operating temperature range is -40°C to +70°C, and MTBF is approximately 200,000 hours at 25°C, reflecting the carrier-grade reliability standards this unit is built to.
Use Cases
The RB1100Dx4 is designed for ISP core and edge routing with high-throughput IPsec VPN requirements, enterprise WAN aggregation and multi-site VPN gateway deployments, data centre routing with 10G+ aggregate throughput needs, and network operations centres running The Dude for large-scale network monitoring. It is equally suited to any environment requiring a silent, fanless, carrier-grade router with extensive storage for running persistent network services.
Key Specifications at a Glance
- Product Code: RB1100Dx4
- Architecture: ARM 32-bit
- CPU: AL21400 Quad-Core Cortex A15, 1.4GHz (4 cores / 4 threads)
- Switch Chip: RTL8367
- RAM: 1GB
- System Storage: 128MB NAND
- Extended Storage: 60GB M.2 SSD (included, pre-installed)
- M.2 Slots: 2
- SATA Ports: 2 × SATA3
- Memory Card: 1 × microSD slot
- Operating System: RouterOS
- RouterOS Licence: Level 6
- Gigabit Ethernet Ports: 13 × 10/100/1000 Mbps
- Serial Console: RS232
- AC Inputs: 2 (dual redundant)
- DC Inputs: 2 (2-pin terminal: -48V / 20–57V DC; PoE-in: 20–57V)
- PoE In: 802.3af/at
- Max Power Consumption: 33W (25W without attachments)
- Cooling: Passive (fanless)
- Monitoring: PCB temperature monitor, voltage monitor, current monitor, beeper
- MTBF: ~200,000 hours at 25°C
- Tested Ambient Temperature: -40°C to +70°C
- IP Rating: IP20
- Dimensions: 443 × 148 × 44mm
- Certifications: CE, EAC, RoHS
- Included Parts: SATA cables, rack ears, 60GB M.2 SSD, 2× IEC cords, K-57 kit
- Product code
- RB1100Dx4
- Architecture
- ARM 32bit
- CPU core count
- 4
- CPU nominal frequency
- 1.4 GHz
- Operating System
- RouterOS
- Size of RAM
- 1 GB
- Storage size
- 128 MB
- Storage type
- NAND
- Tested ambient temperature
- -40C .. +70C
- Number of DC inputs
- 2 (2-pin terminal, PoE-IN)
- Max Power consumption
- 25W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 20-57 V
- 10/100/1000 Ethernet ports
- 13
- Dimensions
- 444 x 148 x 47 mm
- Number of AC inputs
- 2
- AC input range
- 100-240
- 2-pin terminal input Voltage
- -48, 20-57 V
- Extended storage
- 60GB M.2 SSD included
- M.2 slots
- 2
- SATA ports
- 2x SATA3
- Current Monitor
- Yes
- Voltage Monitor
- Yes
- PCB temperature monitor
- Yes
