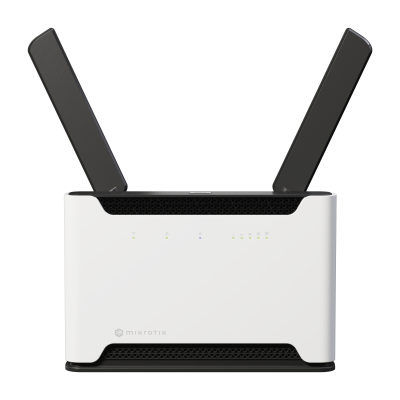

MikroTik Chateau 5G R17 ax eSIM Wi-Fi 6 Router
The MikroTik Chateau 5G R17 ax (S53UG+5HaxD2HaxD-TC&RG650E-EU) is a premium 5G home and office router featuring MikroTik's most advanced mobile modem yet — a 5G Release 17 module with LTE Cat20 capability, 4×4 MIMO, and wide FDD/TDD band support for both 5G NSA and SA modes. What sets it apart is a true built-in eSIM alongside a physical Micro SIM slot, enabling immediate connectivity without needing a physical SIM card — compatible with MikroTik Connectivity and third-party eSIM providers. Paired with dual-band Wi-Fi 6 (4×4 MIMO on both bands), a quad-core ARM64 CPU with 1 GB of RAM, four Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, a USB-A port, and RouterOS v7, the Chateau 5G R17 ax is a powerful all-in-one 5G gateway for homes, remote workers, and mobile operators.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik Chateau 5G R17 ax is the smartest and most capable evolution of MikroTik's iconic Chateau 5G home router series. Combining the latest 5G Release 17 modem technology, a true built-in eSIM, powerful Wi-Fi 6, and the full feature set of RouterOS v7, it is designed for users who demand cutting-edge 5G performance with professional-grade network control — in an elegantly designed desktop enclosure.
5G Release 17 Modem — The Latest Standard
At the heart of the Chateau 5G R17 ax is the RG650E 5G Release 17 modem, representing the latest generation of mobile connectivity. It supports LTE Category 20 with download speeds of up to 2.0 Gbps and 211 Mbps uplink, along with 5G NSA and 5G SA modes across a comprehensive range of FDD and TDD bands. 4×4 MIMO on the downlink (and 2×2 MIMO in 5G SA uplink) maximises signal reception and throughput, while support for carrier aggregation and the expanded band coverage of Release 17 ensures compatibility with the widest range of current and emerging mobile network deployments worldwide. Four dedicated internal LTE/5G antennas provide excellent signal pickup, including in areas with weaker coverage.
True eSIM + Physical Micro SIM
The Chateau 5G R17 ax features a genuine embedded SIM (eSIM) built directly into the hardware — allowing the device to get online instantly without needing a physical SIM card. The eSIM is fully compatible with MikroTik Connectivity (MikroTik's own service for quick provisioning) as well as any third-party eSIM-compatible mobile operator, with support for multiple eSIM profiles that can be switched without opening the device. A Micro SIM slot is also available for users who prefer a traditional physical SIM, giving maximum flexibility in how the device is provisioned and managed. This makes the Chateau 5G R17 ax particularly well-suited for remote deployments, mobile operator device management programs, and situations where out-of-box connectivity is essential.
Dual-Band Wi-Fi 6 with 4×4 MIMO
The Chateau 5G R17 ax delivers dual-band Wi-Fi 6 (802.11ax) across both 2.4 GHz and 5 GHz, with 4×4 MIMO and two external dual-chain Wi-Fi antennas providing strong coverage suited to homes of all sizes, including multi-floor setups. The 2.4 GHz band (QCN-5022) achieves up to 574 Mbit/s, while the 5 GHz band (QCN-5052) delivers up to 1,200 Mbit/s — providing reliable, high-throughput wireless connectivity for all connected devices.
Powerful ARM64 Processing
The Qualcomm IPQ-6010 quad-core ARM 64-bit processor operating between 864–1800 MHz, combined with 1 GB of RAM and 128 MB of NAND storage, provides ample processing power for running the full RouterOS v7 feature set including VPNs, firewalling, traffic shaping, VLAN segmentation, and container support.
Wired Connectivity
Five wired Ethernet ports cover a broad range of use cases: four standard Gigabit Ethernet ports handle typical client connections, while a single 2.5 Gigabit Ethernet port provides a faster link for a NAS, a high-performance workstation, or a secondary router. A USB-A port (up to 1.5A, with USB power reset) allows connection of USB storage devices for local file sharing, logging, or other RouterOS-compatible applications.
RouterOS v7 — Full Professional Control
Running RouterOS v7, pre-installed and fully licensed with no subscription required, the Chateau 5G R17 ax puts professional-grade network management in the hands of every user. VPN configuration, bandwidth limiting, site blocking, VLAN creation, SMS alerts, TR-069 remote management for operators, and advanced scripting are all available from day one. IPsec VPN throughput on a single tunnel reaches approximately 878 Mbps, making it a capable platform for secure remote working environments. Passive cooling ensures silent operation across a tested ambient temperature range of -40°C to 70°C.
Ideal Use Cases
The Chateau 5G R17 ax is a perfect fit for remote workers who need fast, reliable, and secure 5G internet; mobile operators looking for a modern, TR-069-manageable customer premises device; households wanting to replace slow DSL or poorly performing Wi-Fi extenders with a serious 5G gateway; and anyone who wants to get online immediately with eSIM without waiting for a physical SIM to arrive.
Key Specifications at a Glance:
- Product Code: S53UG+5HaxD2HaxD-TC&RG650E-EU
- CPU: Qualcomm IPQ-6010, ARM 64-bit, quad-core, 864–1800 MHz
- RAM: 1 GB | Storage: 128 MB NAND
- 5G Modem: Release 17, LTE Cat20 (2.0 Gbps DL / 211 Mbps UL), 4×4 MIMO DL, NSA + SA
- SIM: Built-in eSIM + 1× Micro SIM slot
- Wi-Fi 6: Dual-band 4×4 MIMO — 2.4 GHz (574 Mbit/s) + 5 GHz (1,200 Mbit/s)
- Ethernet: 4× Gigabit + 1× 2.5 Gigabit
- USB: 1× USB-A (1.5A, power reset)
- Power: DC jack (12–28V), max 27W, passive cooling
- Operating Temp: -40°C to 70°C | MTBF: ~200,000 hours at 25°C
- Certifications: CE, EAC, RoHS
- OS: RouterOS v7 (pre-installed & licensed)
- Product code
- S53UG+5HaxD2HaxD-TC&RG650E-EU
- CPU architecture
- ARM 64bit
- CPU
- Quad-Core IPQ-6010 Frequency range - auto (864-1800MHz)
- Operating System
- RouterOS v7, License level 4
- Size of RAM
- 1 GB
- Storage size
- 128 MB NAND
- Number of DC inputs
- 1
- DC jack input Voltage
- 12-28 V
- Max Power consumption
- 26 W
- Max power consumption without attachments
- 16 W
- 3G Category
- R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands
- 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
- Number of SIM slots
- Micro SIM, eSIM
- Number of USB ports
- 1 USB 2.0 type A
- LTE Category
- 20 (2.0 Gbps Downlink, 211 Mbps Uplink)
- LTE FDD bands
- 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)
- LTE TDD bands
- 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz)
- MIMO DL
- 4x4
- MIMO UL
- 2x2
- TAC
- 86896506
- Operating Temperature
- -40°C to +70°C
- Wireless Standards
- 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain
- Antenna gain
- 3 dBi (2.4 GHz), 6 dBi (5 GHz)
- Number of 1G Ethernet ports
- 4
- Number of 2.5G Ethernet ports
- 1
- Wireless interface model
- QCN-5022 (2.4 GHz), QCN-5052 (5GHz)
- LTE modem
- RG650E-EU
- Power adapter nominal voltage
- 24 V
- Power adapter nominal current
- 1.2 A
- 5G NSA FDD bands
- 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz)
- 5G NSA TDD bands
- 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 77 (3700 MHz) / 78 (3500 MHz)
- 5G SA FDD bands
- 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz)
- 5G SA TDD bands
- 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 77 (3700 MHz) / 78 (3500 MHz)
- 5G SA Category
- 7.01 Gbps Downlink, 1.25 Gbps Uplink
- 5G NSA Category
- 5.47 Gbps Downlink, 730 Mbps Uplink
