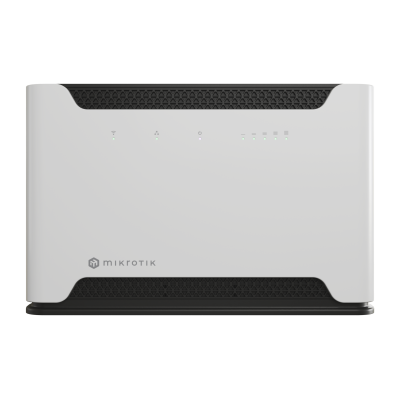

MikroTik Chateau LTE7 Wi-Fi 5 LTE Cat7 Router
The MikroTik Chateau LTE7 (D53G-5HacD2HnD-TC&R11e-LTE7) is an affordable, elegantly designed home and small office LTE Cat7 router — keeping the signature Chateau aesthetic and quad-core IPQ-4019 platform while upgrading to the R11e-LTE7 modem for faster uploads, Band 28, and carrier aggregation at a lower price than the previous LTE6 model. It features dual-band Wi-Fi 5 (300 Mbps at 2.4 GHz + 867 Mbps at 5 GHz), 5× Gigabit Ethernet ports, 1× Micro SIM slot, 1× USB-A port, 256 MB RAM, and full RouterOS v7 — purpose-built for households and small businesses that want reliable LTE connectivity without ISP-supplied equipment.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik Chateau LTE7 (D53G-5HacD2HnD-TC&R11e-LTE7) is proof that replacing your ISP-supplied router does not have to be complicated or expensive. The Chateau series has been a global favourite for years — appreciated for its clean design that fits naturally into homes and offices without looking like industrial equipment. The LTE7 edition upgrades the modem to Cat7 and drops the price below the outgoing LTE6 model.
The R11e-LTE7 modem delivers 300 Mbps downlink and 100 Mbps uplink — twice the upload speed of Cat6 — with Band 28 (700 MHz) for better rural coverage and carrier aggregation (2×CA) for improved efficiency on congested towers. Whether LTE is your primary connection or a backup to a wired ISP service, the Chateau adapts to your setup without reconfiguration.
RouterOS v7 License Level 4 provides the full networking stack — VPNs for remote work, advanced firewall rules, VLANs, DHCP, traffic prioritization, usage monitoring, and scripted automation. Or simply plug it in and forget it exists. The Chateau scales with your knowledge — equally useful to homelab enthusiasts, remote workers, and households with no IT background.
Key features:
- LTE Cat7 — 300 Mbps downlink, 100 Mbps uplink, 2×2 MIMO DL / 1×1 MIMO UL
- LTE FDD bands: B1 (2100 MHz), B3 (1800 MHz), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz), B20 (800 MHz), B28 (700 MHz)
- LTE TDD bands: B38 (2600 MHz), B40 (2300 MHz), B41 (2500 MHz)
- Carrier aggregation (2×CA) — use multiple LTE bands simultaneously for higher efficiency
- 3G R8 fallback — 42.2 Mbps downlink, 5.76 Mbps uplink; bands B1, B3, B5, B8
- Dual-band Wi-Fi 5 — 300 Mbps at 2.4 GHz (802.11b/g/n, 2×2, 2 dBi) + 867 Mbps at 5 GHz (802.11a/n/ac, 2×2, 4 dBi)
- 5× 10/100/1000 Mbps Gigabit Ethernet ports — wired devices, NAS, TVs, PCs
- 1× Micro SIM slot
- 1× USB-A port (up to 1A) with USB Power Reset
- Quad-core IPQ-4019 ARM 32-bit CPU, 448–896 MHz (auto), 256 MB RAM, 16 MB FLASH
- DC jack input 12–28V, max power consumption 20W (14.1W without attachments)
- Passive cooling, -40°C to +70°C, MTBF ~200,000 hours at 25°C
- RouterOS v7, License Level 4 — free updates for life (minimum 5 years), no subscriptions, no locked features
- Certified CE, EAC, RoHS | IP20
In the box: 24V 1.2A power adapter, UTP flat cable (1.5m).
Ideal for: homes and apartments on LTE, home offices with LTE as primary or backup connection, small businesses replacing ISP-supplied routers, rural households in Band 28 coverage areas, remote workers needing reliable VPN, and anyone who wants the full RouterOS feature set in a stylish, passively cooled enclosure at an accessible price point.
- Product code
- D53G-5HacD2HnD-TC&R11e-LTE7
- CPU architecture
- ARM 32bit
- CPU
- Quad-Core IPQ-4019 448-896 MHz (auto)
- Switch chip model
- IPQ-4019
- Operating System
- RouterOS v7, License level 4
- Size of RAM
- 256 MB
- Storage size
- 16 MB Flash
- Number of DC inputs
- 1
- DC jack input Voltage
- 12-28 V
- Max Power consumption
- 21 W
- Max power consumption without attachments
- 16 W
- 3G Category
- R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
- 3G bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz)
- Dimensions
- 240 x 156 x 44 mm
- Number of USB ports
- 1 (2.0 type A)
- LTE Category
- 7 (DL: 300 Mbps; UL: 100 Mbps)
- LTE FDD bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
- LTE TDD bands
- 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz)
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- TAC
- 35312597
- Operating Temperature
- -40°C to +70°C
- Wireless Standards
- 2.4 GHz 802.11b/g/n dual-chain, 5 GHz 802.11a/n/ac dual-chain
- Antenna gain
- 2.4 GHz - 2 dBi, 5 GHz - 4 dBi
- RAM type
- DDR3L
- Number of 1G Ethernet ports
- 5
- Wireless interface model
- IPQ-4019 (2.4 GHz), IPQ-4019 (5 GHz)
- LTE modem
- R11e-LTE7
- Power adapter nominal voltage
- 24 V
- Power adapter nominal current
- 1.2 A
