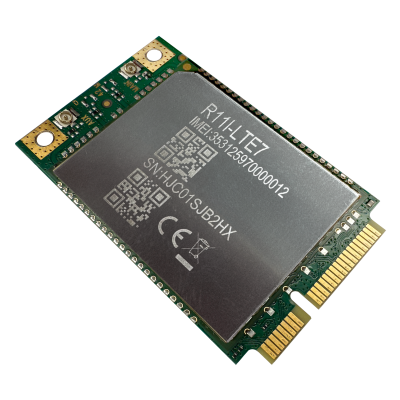

MikroTik R11e-LTE7 miniPCIe LTE Cat7 Modem Card
The MikroTik R11e-LTE7 is a compact miniPCIe LTE Cat7 modem card built as a direct drop-in upgrade for RouterBOARD integrators — replacing the older FG621-EA with faster speeds, a smaller form factor, and expanded band support. It delivers 300 Mbps downlink and 100 Mbps uplink with Band 28 (700 MHz) and Band 32 (1500 MHz) for better rural coverage, plus carrier aggregation (2×CA) for improved performance on congested networks. Fully compatible with RouterOS v7 devices including the LtAP, LtAP LTE7 Kit, RBM33G, and any RouterBOARD with a miniPCIe slot or USB adapter — upgrade LTE performance without replacing the entire device.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik R11e-LTE7 is the modem behind the Chateau LTE7 ax and LtAP LTE7 Kit — now available as a standalone miniPCIe card for RouterBOARD integrators who want to upgrade existing deployments without changing the whole platform.
It is a direct drop-in replacement for the FG621-EA. The upgrade to Cat7 delivers twice the upload speed of Cat6 (up to 100 Mbps uplink), adds Band 28 (700 MHz) for rural and suburban coverage and Band 32 (1500 MHz) for urban and operator-specific deployments, and enables carrier aggregation (2×CA) for more efficient use of available spectrum. Its smaller form factor compared to the FG621 means it fits into a wider range of enclosures and devices without modification.
Compatible via miniPCIe slot natively, or via USB adapter on any RouterBOARD supporting USB modem attachment.
Key features:
- LTE Cat7 — 300 Mbps downlink, 100 Mbps uplink, 2×2 MIMO DL / 1×1 MIMO UL
- LTE FDD bands: B1 (2100 MHz), B3 (1800 MHz), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz), B20 (800 MHz), B28 (700 MHz), B32 (1500 MHz)
- LTE TDD bands: B38 (2600 MHz), B40 (2300 MHz), B41 (2500 MHz)
- Carrier aggregation (2×CA) — improved throughput on congested networks
- 3G R8 fallback — 42.2 Mbps downlink, 5.76 Mbps uplink; bands B1, B3, B5, B8
- Smaller form factor than FG621-EA — fits in more enclosures
- Direct drop-in replacement for FG621-EA — no reconfiguration required
- miniPCIe interface — also usable via USB adapter
- Max power consumption 5W
- Tested ambient temperature: -10°C to +55°C
- MTBF ~100,000 hours at 25°C
- TAC: 35312597
- Certified CE, RoHS | IP00
Compatible RouterBOARD devices: LtAP, LtAP LTE7 Kit, RBM33G, and any RouterBOARD with a miniPCIe slot or USB adapter running RouterOS v7.
Ideal for: upgrading existing LtAP or RBM33G deployments from LTE Cat4/Cat6 to Cat7, vehicle and fleet networking, field deployments, custom RouterBOARD builds, and system integrators building LTE-connected solutions on the MikroTik platform.
- Product code
- R11e-LTE7
- Operating System
- RouterOS
- Max Power consumption
- 5 W
- 3G Category
- R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands
- 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- LTE Category
- 7 (300Mbps Downlink, 100Mbps Uplink)
- LTE FDD bands
- 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)
- LTE TDD bands
- 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- TAC
- 35312597
- Format
- miniPCIe
- Operating Temperature
- -10°C to +55°C
- LTE modem
- ASR1828
- RF connector type
- 2 uUFL
