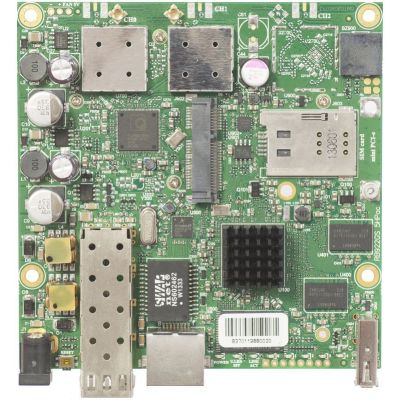

MikroTik RB922UAGS-5HPacD 5GHz 867Mbps SFP Board
zoom_out_map
chevron_left chevron_right
Contact us for back-order

MikroTik RB922UAGS-5HPacD 5GHz Wi-Fi 5 SFP Board

The MikroTik RB922UAGS-5HPacD is a bare 5 GHz Wi-Fi 5 RouterBOARD — QCA9557 single-core MIPSBE at 720 MHz, 128 MB RAM, 128 MB NAND flash, RouterOS v7 License 4 (AP), onboard 5 GHz 802.11a/n/ac 2×2 MIMO 867 Mbps (QCA9882, 2× MMCX), 1× GbE, 1× SFP with DDMI, 1× miniPCIe + 1× SIM slot, 1× USB Type-A, passive PoE-in 8–30V, 17W max, beeper, PCB temperature + voltage monitors, passive cooling, IP00, 105 × 105 mm, -40°C to +70°C, MTBF ~100,000 hours at 25°C. CE, FCC, IC, EAC, RoHS. International version — 5150–5875 MHz full range. Free software updates for life of product or minimum 5 years from purchase.

US$99.00 Tax excluded

US$99.00 Tax excluded

block Contact us for back-order
US/Canada
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

The MikroTik RB922UAGS-5HPacD is a bare 5 GHz Wi-Fi 5 RouterBOARD — onboard 802.11ac 2×2 MIMO, 1× GbE, 1× SFP with DDMI, miniPCIe with SIM slot, USB, and passive PoE-in, supplied without an enclosure for custom wireless builds and embedded deployments.

**Onboard 5 GHz 802.11a/n/ac 2×2 MIMO — 867 Mbps 20/40/80 MHz channels**

QCA9882 onboard radio delivers 802.11a/n/ac (Wi-Fi 5) at up to 867 Mbps across 20, 40, and 80 MHz channels — 2× MMCX connectors for external antenna selection. International version (RB922UAGS-5HPacD) supports the full 5150–5875 MHz range — not factory locked like the US variant. Full frequency range for compliant Canadian deployment.

**1× SFP with DDMI + 1× GbE — fiber or copper uplink**

SFP cage with DDMI (Digital Diagnostics Monitoring Interface) allows real-time optical module health monitoring — RX/TX power, temperature, and bias current readable from RouterOS. Single GbE port for copper LAN or WAN connectivity.

**miniPCIe + SIM slot — 3G/4G modem or second wireless card**

One miniPCIe slot with a dedicated Mini SIM slot accepts a 3G/4G LTE modem for cellular WAN failover, or a second wireless card for dual-band or dual-radio deployments. USB Type-A (1A) with USB Power Reset for software-controlled modem reboot without on-site access.

**IC certified — Canadian market ready**

CE, FCC, IC, EAC, RoHS — confirmed ISED certification for compliant 5 GHz wireless sale and deployment across Canada. International frequency range (5150–5875 MHz) — not the US-locked variant (5170–5250 MHz / 5725–5835 MHz).

**No enclosure — bare board for custom builds.**

MikroTik
RB922UAGS-5HPacD
4752224001009
Product code
RB922UAGS-5HPacD
Architecture
MIPSBE
CPU core count
1
CPU nominal frequency
720 MHz
Operating System
RouterOS
Size of RAM
128 MB
Storage size
128 MB
Storage type
NAND
Tested ambient temperature
-40°C to 70°C
Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
8-30 V
Max Power consumption
17 W
PoE in
Passive PoE
PoE in input Voltage
8-30 V
10/100/1000 Ethernet ports
1
Dimensions
105x105mm
SFP DDMI
yes
SFP ports
1
Number of SIM slots
1 Modem (Mini SIM)
Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB type A
Max USB current (A)
1
Voltage Monitor
Yes
PCB temperature monitor
Yes
Wireless 5 GHz number of chains
2
Wireless 5 GHz standards
802.11a/n/ac
Wireless 5 GHz chip model
QCA9882
MiniPCI-e slots
1
Wireless 5 GHz Max data rate
867 Mbit/s
Wireless 5 GHz generation
Wi-Fi 5
Certification
CE/RED, FCC, IC, EAC, ROHS
