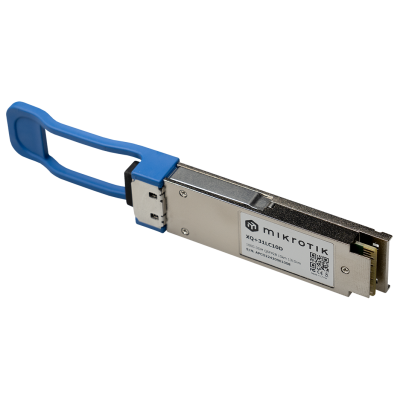

MikroTik XQ+31LC10D 100G QSFP28 LR4 10km SMF Module
The MikroTik XQ+31LC10D is a 100G QSFP28 single-mode fiber transceiver — Dual LC UPC connector, 4× independent full-duplex 25G channels, 1296/1300/1305/1309nm wavelengths (LR4-style WDM), 10km reach on single-mode fiber (OS2), built-in digital diagnostics (optical power, temperature, voltage, laser bias current). Compatible with MikroTik CCR2216, CRS504-4XQ-IN/OUT, CRS510-8XS-2XQ-IN, CRS518-16XS-2XQ-IN, and any IEEE 100GBASE-LR4 compliant QSFP28 port. MTBF ~200,000 hours at 25°C. No certifications listed (passive optical module). USD 349.00.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik XQ+31LC10D is a 100G QSFP28 single-mode fiber transceiver designed for the 10km inter-site connections that MikroTik's 100G switch and router platform makes possible — the optical module that turns a QSFP28 port on a CRS504-4XQ-OUT, CRS510-8XS-2XQ-IN, CRS518-16XS-2XQ-IN, or CCR2216 into a 10km 100G single-mode fiber link.
**4× 25G WDM channels — how 100G travels 10km on a single SMF pair**
The XQ+31LC10D implements 100GBASE-LR4 — four independent 25G full-duplex optical channels on four separate wavelengths (1296nm, 1300nm, 1305nm, 1309nm), multiplexed onto a single-mode fiber pair via WDM (Wavelength Division Multiplexing). Each wavelength carries 25 Gbps independently — the four lanes aggregate to 100 Gbps full duplex. The Dual LC UPC connector connects to a standard OS2 single-mode fiber patch cord or pre-terminated fiber run. At 10km reach on OS2 SMF, the XQ+31LC10D covers the inter-building, campus, and tower-to-PoP distances that define ISP aggregation and enterprise campus deployments.
**Digital diagnostics — monitoring optical health in RouterOS**
The XQ+31LC10D includes built-in digital diagnostic monitoring (DDM/DOM) — reporting optical transmit power, received optical power, transceiver supply voltage, operating temperature, and per-channel laser bias current directly to the host switch or router. In RouterOS, these diagnostics are accessible via the interface monitoring commands — providing real-time optical link health without external test equipment. MikroTik explicitly highlights the value: "monitoring allows you to plan ahead, make informed decisions and predict necessary upgrades or maintenance based on the transceiver performance." A gradual decline in received optical power — indicating fiber degradation, connector contamination, or bend loss — is visible in RouterOS before the link fails, enabling proactive maintenance scheduling rather than reactive fault response.
**Compatible MikroTik QSFP28 platforms**
MikroTik explicitly lists the primary compatible devices on the product page: CCR2216, CRS504 (both -4XQ-IN and -4XQ-OUT variants), and CRS518-16XS-2XQ-IN. The CRS510-8XS-2XQ-IN's two QSFP28 ports are also compatible — confirmed by the shared 98DX4310 Prestera ASIC platform and standard QSFP28 electrical interface. Any third-party switch or router with a standard 100GBASE-LR4 compliant QSFP28 port is also compatible — the XQ+31LC10D adheres to the IEEE 802.3ba 100GBASE-LR4 standard.
**Deployment context — where the 10km SMF reach applies**
- **Tower-to-PoP 100G fiber backhaul:** A CRS504-4XQ-OUT at a tower site connected via XQ+31LC10D to a CRS518 or CCR2216 at the ISP's PoP — up to 10km on pre-existing single-mode fiber infrastructure.
- **Campus inter-building 100G links:** Two CRS510-8XS-2XQ-IN units in separate campus buildings connected via XQ+31LC10D transceivers and an OS2 fiber run — 100G inter-building bandwidth within a single campus.
- **Data centre inter-row or inter-suite 100G:** Distances within a data centre or between suites in the same building where DAC cables are too short and AOC cables are unnecessary — a clean OS2 SMF patch cord with XQ+31LC10D at each end.
**Cross-sell note for wirelessnetware.ca:** List the XQ+31LC10D as a recommended accessory on the CRS504-4XQ-IN, CRS504-4XQ-OUT, CRS510-8XS-2XQ-IN, CRS518-16XS-2XQ-IN, and CCR2216 product pages. Suggested label: *"Add 100G single-mode fiber connectivity up to 10km — XQ+31LC10D QSFP28 transceiver (USD 349.00)"*
Key specifications:
- **Product code:** XQ+31LC10D
- **Format:** QSFP28
- **Data rate:** 100G (4× 25G channels)
- **Standard:** 100GBASE-LR4 (IEEE 802.3ba)
- **Fiber mode:** Single-mode (OS2)
- **Connector:** Dual LC UPC
- **Wavelengths:** 1296nm, 1300nm, 1305nm, 1309nm
- **Reach:** 10km
- **Digital diagnostics:** Optical power, voltage, temperature, laser bias current
- **MTBF:** ~200,000 hours at 25°C
- **Compatible devices:** CCR2216, CRS504-4XQ-IN/OUT, CRS510-8XS-2XQ-IN, CRS518-16XS-2XQ-IN
- **Certifications:** None listed (passive optical module)
- **Suggested price:** USD 349.00
- Product code
- XQ+31LC10D
- Max Power consumption
- 4.5W
- Connector
- LC
- Data Rate
- 100G
- Distance
- 10km
- Format
- QSFP28
- Mode
- SM
- Wavelength
- 1296, 1300, 1305, 1309 nm
- Operating Temperature
- 0°C .. +70°C
