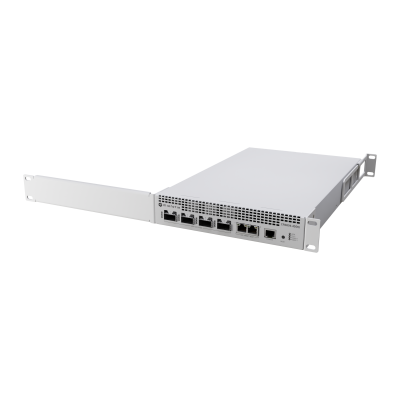

MikroTik CRS804 DDQ 400G 1U Switch 4×QSFP56-DD
The MikroTik CRS804 DDQ (CRS804-4DDQ-hRM) is a compact 1U 400G switch built for AI clusters, storage fabrics, and high-speed aggregation. It features four 400G QSFP56-DD ports with flexible breakout down to 1G, dual 1G/10G Ethernet, a Marvell 98DX7335 switch chip, quad-core 2 GHz ARM CPU, 4 GB DDR4 RAM, dual hot-swap redundant power supplies, and two hot-swap cooling fans — all at 123W max power consumption. Runs RouterOS v7 with License Level 6.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik CRS804 DDQ (CRS804-4DDQ-hRM) is a compact, efficient, and future-proof 400G switch designed for environments where bandwidth density, reliability, and cost of ownership matter. Powered by the Marvell 98DX7335 switch chip and a quad-core 2.0 GHz ARM CPU with 4 GB DDR4 RAM, it delivers wire-speed switching across all ports while running RouterOS v7 for advanced traffic management and a familiar management environment.
Four 400G QSFP56-DD ports each carry eight independent data lanes, enabling flexible breakout to 2×200G, 4×100G, 4×40G, 4×25G, 4×10G, or lower speeds — allowing the CRS804 DDQ to interconnect virtually any SFP or QSFP device in your existing network and scale to higher speeds over time without replacing the switch.
Key features:
- 4× 400G QSFP56-DD ports — breakout to 1G/2.5G/5G/10G/25G/50G/100G/200G
- 2× 1G/10G Ethernet ports (10M/100M/1G/10G supported)
- Marvell 98DX7335 switch chip — full wire-speed on all ports
- Quad-core 2.0 GHz ARM AL52400 CPU, 4 GB DDR4 RAM, 512 MB NAND
- Dual hot-swap redundant AC power supplies (100–240V, 50–60 Hz) — included
- 2× hot-swap cooling fans for sustained thermal stability
- Max power consumption 123W (92W without attachments)
- Serial console port (RJ45) for out-of-band management
- CPU, PCB, and voltage monitoring
- RouterOS v7, License Level 6 — free updates for life (minimum 5 years)
- Rackmountable 1U — RMK-2x10/19 kit, rackmount brackets, and K-99 fastening set included
- -10°C to +60°C, MTBF ~200,000 hours at 25°C
- Certified CE, EAC, RoHS | IP20
In the box: 2× IEC cords, rackmount bracket, rackmount rear support ears, rackmount bracket (long), RMK-2x10/19, K-99 fastening set.
Optional accessories: G1394-0350WNA (350W AC hot-swap PSU replacement), G1382-0350WNA (-48V DC hot-swap PSU), MT-HotSwapFan-V2 (replacement fan module), DQ+BC0003-DS+ (200G QSFP56 breakout DAC 3m).
Ideal for: AI and GPU clusters, all-flash storage fabrics, compact 400G spine/backbone fabrics, edge compute installations, enterprise pods, and small data centres where traditional 400G equipment is too costly, too loud, or too large.
- Product code
- CRS804-4DDQ-hRM
- CPU architecture
- ARM 64bit
- CPU
- Quad-Core AL52400 2000 MHz
- Switch chip model
- 98DX7335
- Operating System
- RouterOS v7, License level 6
- Size of RAM
- 4 GB
- Storage size
- 512 MB, NAND
- Max Power consumption
- 123 W
- Number of AC inputs
- 2
- AC input range
- 100-240 V
- Operating Temperature
- -10°C to +60°C
- RAM type
- DDR4
- Power adapter nominal voltage
- 12 V
- Power adapter nominal current
- 27.5 A
- Number of 1G/2.5G/5G/10G Ethernet ports
- 2
- Number of 400G QSFP56-DD ports
- 4
- Max power consumption (without attachments)
- 92 W
