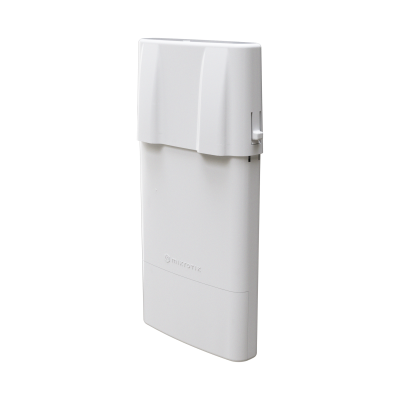

MikroTik NetBox 5 ax Wi-Fi 6 Outdoor 5 GHz AP RouterOS
The MikroTik NetBox 5 ax is a compact outdoor Wi-Fi 6 access point delivering up to 1,200 Mbps on the 5 GHz band (802.11ax, 2-chain, 17 dBi directional panel antenna) in a 135 × 135 × 57 mm IP55-rated enclosure rated from -40°C to +70°C — running RouterOS v7 on a dual-core ARM64 IPQ-5010M at 1 GHz with 256 MB RAM. 802.3af/at PoE-in on a single Gigabit Ethernet port, passive cooling, 9W max, WPA3/OWE, CAPsMAN-ready. Includes Gigabit PoE injector, power adapter, and mounting hardware. The correct outdoor Wi-Fi 6 AP for point-to-client fixed wireless delivery, outdoor venue coverage, and any 5 GHz deployment where a directional panel and IP55 weatherproofing are required.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik NetBox 5 ax is a purpose-built outdoor Wi-Fi 6 access point — not a repurposed indoor AP in a weatherproof shell, but a device designed from the enclosure inward for permanent outdoor deployment. The IP55 rating (complete dust protection, protection against water jets from any direction), -40°C to +70°C operating range, and passive cooling (no fan, no moving parts) combine to produce a device that installs on a wall, pole, or mast and operates continuously through Canadian winter, summer, and everything between — without the maintenance cycles that fan-cooled or inadequately sealed outdoor APs impose.
The 17 dBi directional panel antenna is the defining hardware specification. A standard omnidirectional AP antenna produces 2–5 dBi of gain in all directions — appropriate for indoor 360° coverage. The NetBox 5 ax's 17 dBi directional panel concentrates its radiated energy into a specific direction with significantly higher effective radiated power in that beam. For outdoor fixed wireless delivery — providing Wi-Fi 6 internet access to clients at a defined location, sector, or coverage zone — the 17 dBi directional panel is the correct antenna geometry. It extends usable range beyond what an omni AP achieves at the same transmit power, and it rejects interference from directions outside the beam.
The Wi-Fi 6 (802.11ax) radio on 5 GHz (QCN-5022, 2-chain, 1,200 Mbps max) delivers the OFDMA, MU-MIMO, and BSS colouring improvements that characterise the 802.11ax standard — all relevant in outdoor deployments where multiple clients connect simultaneously and where adjacent-channel interference from neighbouring APs is a real constraint. The 5 GHz-only design is a deliberate choice for this product: 5 GHz provides higher throughput capacity and less interference than 2.4 GHz in most outdoor deployment scenarios where the NetBox 5 ax is the correct tool. Buyers who need 2.4 GHz outdoor coverage should evaluate a different product.
Security is Wi-Fi 6 grade: WPA3-PSK, WPA3-EAP, OWE (Opportunistic Wireless Encryption), and management frame protection. OWE is specifically valuable in outdoor public Wi-Fi deployments — it provides encrypted Wi-Fi sessions for clients connecting to open networks, without requiring a password. For outdoor venue Wi-Fi, public park Wi-Fi, marina Wi-Fi, and campground connectivity where open access is required but client data must still be protected, OWE is the correct security configuration.
CAPsMAN integration (MikroTik's wifi-qcom CAPsMAN) allows any RouterOS device to centrally manage multiple NetBox 5 ax units across a site — SSID policy, security configuration, channel assignment, and roaming policy managed from a single controller rather than configured per-device. For outdoor deployments covering large areas — festival grounds, sports venues, marina docks, campgrounds, outdoor markets, industrial yards — CAPsMAN reduces multi-AP deployment from per-device configuration to controller-level policy, applied simultaneously across all units. Fast roaming (802.11r-compatible) allows client devices to transition between NetBox 5 ax units covering adjacent sectors without re-authentication delays.
Power is delivered via 802.3af/at PoE-in (18–57V) on the single 10/100/1000 Mbps Ethernet port — a single Ethernet cable from the nearest PoE switch or included PoE injector carries both power and data to the mounting point. No separate power run to the pole or wall is required. Maximum power consumption is 9W — low enough that a single PoE port on any 802.3af switch powers the device with headroom to spare. The included Gigabit PoE injector and power adapter provide a complete power solution out of the box. For multi-unit deployments from a central PoE switch, no per-unit injector purchase is required beyond the included unit.
RouterOS v7 on License 4 runs on a dual-core ARM64 IPQ-5010M at 1 GHz with 256 MB RAM and 128 MB NAND — sufficient compute for full RouterOS feature operation including firewall, QoS, VPN, VLAN, scripting, and CAPsMAN client mode. Software updates are included for the life of the product, guaranteed minimum 5 years from purchase. MTBF is ~200,000 hours at 25°C — the highest MTBF tier published in the MikroTik catalogue and consistent with the KNOT LR8G, LHG LTE18, and cAP LTE12 ax.
The physical form factor — 135 × 135 × 57 mm, 415 g — is compact enough for pole, wall, or mast installation without wind loading concerns or heavy mounting hardware. The included fastening set and mounting hardware support standard outdoor installation scenarios.
**Canadian outdoor deployment context:** The NetBox 5 ax's -40°C lower temperature limit matches the most extreme documented winter ambient temperatures in Canadian Prairie and northern communities. The IP55 water jet resistance covers driving rain, pressure washing of adjacent surfaces, and high-humidity coastal environments. The passive cooling design eliminates the fan failure mode that is the primary cause of premature outdoor AP replacement in Canadian conditions — freeze-thaw cycles accelerate fan bearing wear in actively cooled units. For Canadian outdoor Wi-Fi deployments where three-to-five-year unattended operation is the reliability expectation, passive cooling is a material advantage over fan-cooled alternatives.
Key specifications:
- **Wi-Fi:** 802.11a/n/ac/ax, Wi-Fi 6, 5 GHz only, 2-chain, 1,200 Mbps max, QCN-5022
- **Antenna:** 17 dBi integrated directional panel
- **Wi-Fi security:** WPA3-PSK, WPA3-EAP, OWE, management frame protection
- **Ethernet:** 1× 10/100/1000 Mbps, PoE-in
- **PoE-in:** 802.3af/at, 18–57V
- **Max power consumption:** 9W
- **Cooling:** Passive
- **CPU:** IPQ-5010M, dual-core ARM64, 1,000 MHz
- **RAM:** 256 MB
- **Storage:** 128 MB NAND
- **OS:** RouterOS v7, License 4
- **IP rating:** IP55
- **Dimensions:** 135 × 135 × 57 mm
- **Weight:** 415 g
- **Operating temperature:** -40°C to +70°C
- **MTBF:** ~200,000 hours at 25°C
- **Certifications:** CE, EAC, RoHS — no FCC, no IC published
- **Included:** Gigabit PoE injector, power adapter, mounting hardware, fastening set
- **Product code:** NBE-5-axD
Note: 5 GHz only — no 2.4 GHz radio. Clients must support 5 GHz Wi-Fi for association. Confirm IC certification with your MikroTik distributor before listing for the Canadian market.
- Product code
- L11UG-5HaxD-NB
- Architecture
- ARM
- CPU core count
- 2
- CPU nominal frequency
- 800 MHz
- Operating System
- RouterOS v7
- Size of RAM
- 256 MB
- Storage size
- 128 MB
- Storage type
- NAND
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 1 (PoE-IN)
- Max Power consumption
- 15W
- Max power consumption without attachments
- 6W
- Cooling type
- Passive
- PoE in
- Passive PoE
- PoE in input Voltage
- 18-28 V
- 10/100/1000 Ethernet ports
- 1
- Number of USB ports
- 1
- USB Power Reset
- Yes
- USB slot type
- USB Type A
- Max USB current (A)
- 1.5
- Voltage Monitor
- YES
- PCB temperature monitor
- YES
- Wireless 5 GHz number of chains
- 2
- Wireless 5 GHz standards
- 802.11a/n/ac/ax
- Wireless 5 GHz chip model
- QCN-6102
- Wi-Fi generation
- Wi-Fi 6
- Wireless 5 GHz Max data rate
- 2400 Mbit/s
- Certification
- CE, FCC, IC, EAC, ROHS
- IP rating
- 54
