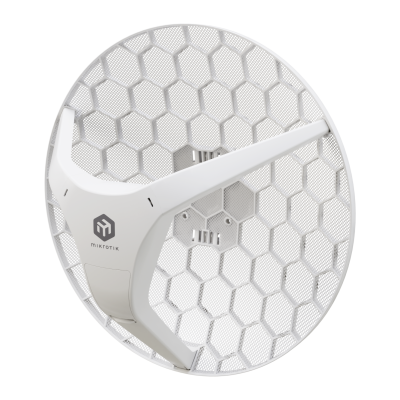

MikroTik LHG XL 5 ax 27 dBi Wi-Fi 6 Outdoor PtP CPE
The MikroTik LHG XL 5 ax (LHG-5axD-XL) is the high-gain long-range outdoor Wi-Fi 6 CPE built for point-to-point links that demand maximum reach and signal stability. With a 27 dBi integrated grid antenna, 5 GHz 802.11a/n/ac/ax at 1,200 Mbps, WPA3 security, dual-core IPQ-5010 ARM CPU, 256 MB RAM, passive PoE powering (12–28V), IP54 weatherproofing, FCC and IC certification, and RouterOS v7 — it is capable of stable PtP links up to 30 km in ideal conditions. The XL model is the right choice when the standard LHG 5 ax (24.5 dBi) is not enough.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik LHG XL 5 ax is the answer to the oldest problem in outdoor wireless networking: getting a fast, stable link across a distance that makes standard access points irrelevant. At 27 dBi, the LHG XL 5 ax generates the antenna gain needed to bridge buildings, connect remote sites, and share internet across infrastructure gaps where nothing else at this price point is viable.
The jump from the previous LHG generation to the LHG XL 5 ax is not a spec sheet refresh — it is a generational change in the wireless standard. Wi-Fi 6 (802.11ax) brings 1024-QAM modulation, OFDMA, and improved spectral efficiency to the LHG platform for the first time. In real-world outdoor links, this translates to higher throughput per MHz, more reliable data rates in noisy RF environments (adjacent channels, competing links, interference from other ISM-band devices), and lower latency under load. The previous generation ran 802.11ac at best; the LHG XL 5 ax runs 802.11ax.
WPA3 security is built-in — the current gold standard for wireless encryption, replacing WPA2 in deployments where security requirements have been updated. For managed ISP CPE deployments, WPA3 satisfies modern compliance requirements without additional configuration.
The aerodynamic grid antenna design is a deliberate engineering choice for permanent outdoor installations. Grid antennas shed wind load significantly better than solid dish antennas — critical for tower mounts, rooftop installations, and exposed pole mounts in Canadian weather conditions where wind and ice accumulation are real operational factors.
The Gigabit Ethernet port with passive PoE-in (12–28V) keeps the installation clean — a single cable carries both data and power from the included PoE injector to the unit, with no separate power supply run required at the mounting point. At 5W maximum power consumption, the LHG XL 5 ax is one of the most power-efficient 5 GHz outdoor units in its class.
Key features:
- 27 dBi integrated grid antenna — 5 GHz directional, capable of PtP links up to 30 km in ideal conditions
- Wi-Fi 6 (802.11a/n/ac/ax) — 1024-QAM, OFDMA, improved spectral efficiency over previous LHG generation
- 1,200 Mbps max data rate — dual-chain 5 GHz, QCN-6102 chip
- WPA3 security — modern wireless encryption built-in
- Aerodynamic grid antenna design — reduced wind load for permanent outdoor mounts
- 1× 10/100/1000 Mbps Gigabit Ethernet with Passive PoE-in (12–28V)
- Dual-core IPQ-5010 ARM 32-bit CPU, 800 MHz, 256 MB RAM, 128 MB NAND
- Max power consumption 5W — passive cooling, no moving parts
- IP54 weatherproofing — rain and dust resistant for permanent outdoor installation
- CPU temperature monitor
- RouterOS v7, License Level 3 — wireless bridge, PtP and PtMP modes, VLAN, firewall, traffic shaping, SNMP — no subscriptions, free updates for life (minimum 5 years)
- FCC, IC, CE, EAC, RoHS certified — fully approved for Canadian deployments
- Tested ambient temperature -40°C to +70°C, MTBF ~200,000 hours at 25°C
In the box: 24V 0.38A power adapter, K-LHG mounting kit, Gigabit PoE injector, 2× hose clamps.
Ideal for: point-to-point building-to-building wireless bridges; WISP last-mile CPE at long distances (10–30 km in line-of-sight conditions); remote site connectivity where fiber or cable is unavailable; farm and rural property internet sharing; Canadian outdoor deployments requiring FCC/IC certification and weather resistance down to -40°C; and any outdoor 5 GHz link where the standard 24.5 dBi LHG 5 ax antenna gain is insufficient.
- Product code
- LHG-5axD-XL
- Architecture
- ARM 64bit
- CPU
- IPQ-5010
- CPU core count
- 2
- CPU nominal frequency
- 800 MHz
- RouterOS License
- 3
- Size of RAM
- 256 MB
- Storage size
- 128 MB - NAND
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 1 (PoE-IN)
- Max Power consumption
- 5 W
- Cooling type
- Paassive
- PoE in
- Passive PoE
- PoE in input Voltage
- 12-28 V
- 10/100/1000 Ethernet ports
- 1
- CPU temperature monitor
- Yes
- Wireless 5 GHz number of chains
- 2
- Wireless 5 GHz standards
- 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz
- 27
- Wireless 5 GHz chip model
- QCN-6102
- Wireless 5 GHz generation
- Wi-Fi 6
- Certification
- CE, FCC, IC, EAC, ROHS
- IP
- 54
- Wireless 5 GHz Max data rate
- 1200 Mbit/s
