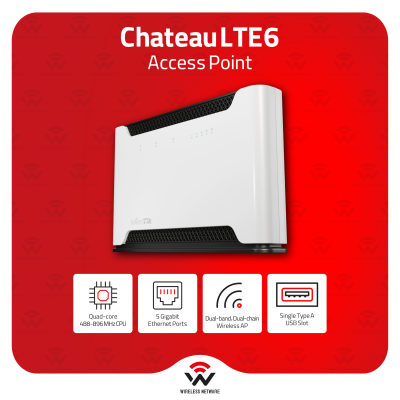

MikroTik Chateau LTE6-US LTE Cat6 Dual-Band Router
The MikroTik Chateau LTE6-US (D53G-5HacD2HnD-TC&EG06-A) is a US-carrier-certified LTE Cat6 home router — quad-core ARM32 IPQ-4019 at 488–896 MHz, 256 MB RAM, 16 MB FLASH, RouterOS v7 License 4, LTE Cat6 300 Mbps down / 50 Mbps up (FDD bands 2/4/5/7/12/13/25/26/29/30/66), 3G R8, 1× Micro SIM, 2× internal + 2× SMA external LTE antennas, dual-band Wi-Fi 5 AC867 + Wi-Fi 4 N300, 5× Gigabit Ethernet, USB-A 1A, DC jack 12–28V, 19W max, passive cooling, IP20, -40°C to +70°C. FCC, CE, EAC, RoHS — no IC. Includes 24V 1.2A US adapter, UTP flat cable. USD 189.00.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik Chateau LTE6-US is a purpose-built LTE Cat6 home and rural access router — combining a cellular modem, dual-band Wi-Fi, 5-port Gigabit switch, and full RouterOS v7 in a living-room-friendly enclosure designed to replace the underpowered mass-market LTE routers that bottleneck modern LTE connections.
**LTE Cat6 — carrier aggregation up to 300 Mbps**
LTE Category 6 is the defining capability of the Chateau LTE6-US. Cat6's carrier aggregation combines two LTE frequency bands simultaneously — reaching up to 300 Mbps downlink and 50 Mbps uplink where the carrier supports it. For a rural household where a nearby LTE tower offers strong signal but a cheap Cat4 router limits throughput to 150 Mbps, the Chateau LTE6-US removes the router as the bottleneck. MikroTik's own documented experience: "Internet speed doubling in rural areas after switching to carrier aggregation."
The EG06-A modem covers 11 LTE FDD bands — 2, 4, 5, 7, 12, 13, 25, 26, 29, 30, 66 — certified for AT&T and T-Mobile in the US. **Canadian operators note:** Bell, Rogers, and Telus primarily use Bands 4, 7, and 12 — partial overlap exists, but Band 13 (Verizon) and Bands 29/30 are not Canadian carrier bands. Confirm specific band compatibility with your Canadian carrier before listing or purchasing. No IC (ISED) certification is published for this variant.
Two internal 2×2 MIMO LTE antennas provide out-of-box connectivity. Two SMA female connectors allow external high-gain LTE antennas (not included) for improved performance in weak-signal rural locations.
**Dual-band Wi-Fi and 5-port Gigabit switch**
The IPQ-4019 provides dual-band wireless: 5 GHz 802.11a/n/ac Wi-Fi 5 at 867 Mbps (5.5 dBi, 2-chain) and 2.4 GHz 802.11b/g/n Wi-Fi 4 at 300 Mbps (3 dBi, 2-chain). All five Gigabit Ethernet ports connect wired devices at full 1G speed — desktop, NAS, smart TV, VoIP — with one port serving as the WAN input when a wired internet feed is preferred over LTE.
**RouterOS v7 — enterprise features at home pricing**
RouterOS v7 License 4 delivers the full feature set: WireGuard VPN, IPsec hardware acceleration, stateful firewall, VLAN, DHCP, DNS, parental controls, hotspot gateway, scripting, and TR-069 remote management. TR-069 enables mobile operators to manage Chateau units remotely on customer premises — configuring APN settings, rebooting, and pushing firmware without a technician visit. For a WISP or MVNO deploying the Chateau LTE6-US as customer premises equipment, TR-069 centralises fleet management.
The USB-A port (1A, USB Power Reset) supports a USB LTE modem for WAN failover, a USB storage device for local file sharing, or a USB printer server.
**5-year software support guarantee:** RouterOS v7 updates free for life of product or minimum 5 years from date of purchase.
**Canadian market advisory:** No IC (ISED) certification published. LTE band set is US-optimised (AT&T/T-Mobile). Confirm Canadian carrier band compatibility before listing. The Chateau LTE6-US is not a recommended stock item for general Canadian LTE CPE deployments without carrier band verification.
Key specifications:
- **Product code:** D53G-5HacD2HnD-TC&EG06-A
- **CPU:** IPQ-4019, quad-core ARM32, 488–896 MHz
- **RAM / Storage:** 256 MB / 16 MB FLASH
- **OS:** RouterOS v7, License 4
- **LTE:** Cat6, 300 Mbps DL / 50 Mbps UL, FDD bands 2/4/5/7/12/13/25/26/29/30/66
- **3G:** R8, bands 2/4/5
- **SIM:** 1× Micro SIM
- **LTE antennas:** 2× internal MIMO + 2× SMA external connectors
- **Wi-Fi 5 GHz:** 802.11a/n/ac, 867 Mbps, 5.5 dBi, 2-chain
- **Wi-Fi 2.4 GHz:** 802.11b/g/n, 300 Mbps, 3 dBi, 2-chain
- **Gigabit Ethernet:** 5×
- **USB:** 1× USB-A, 1A, USB Power Reset
- **DC jack:** 12–28V
- **Max power:** 19W (14.3W without attachments)
- **Cooling:** Passive
- **Operating temp:** -40°C to +70°C
- **MTBF:** ~200,000 hours at 25°C
- **Certifications:** CE, FCC, EAC, RoHS — no IC
- **Included:** 24V 1.2A US power adapter, UTP flat cable 1.5m
- **Suggested price:** USD 189.00
- Product code
- D53G-5HacD2HnD-TC&EG06-A
- Architecture
- ARM 32bit
- CPU
- IPQ-4019
- CPU core count
- 4
- CPU nominal frequency
- 488-896 (auto) MHz
- Operating System
- RouterOS (v7 only)
- Size of RAM
- 256 MB
- Storage size
- 16 MB
- Storage type
- FLASH
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 1 (DC jack)
- DC jack input Voltage
- 12-28 V
- Max Power consumption
- 19 W
- Max power consumption without attachments
- 14.3 W
- Cooling type
- Passive
- 3G Category
- R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands
- 2 (1900MHz) / 5 (850MHz)
- 10/100/1000 Ethernet ports
- 5
- Dimensions
- 240 x 156 x 44 mm
- Number of SIM slots
- 1 Modem (Micro SIM)
- Number of USB ports
- 1
- USB Power Reset
- Yes
- USB slot type
- USB type A
- Max USB current (A)
- 1
- Wireless 2.4 GHz Max data rate
- 300 Mbit/s
- Wireless 2.4 GHz number of chains
- 2
- Wireless 2.4 GHz standards
- 802.11b/g/n
- Antenna gain dBi for 2.4 GHz
- 3
- Wireless 2.4 GHz chip model
- IPQ-4019
- Wireless 5 GHz number of chains
- 2
- Wireless 5 GHz standards
- 802.11a/n/ac
- Antenna gain dBi for 5 GHz
- 5.5
- Wireless 5 GHz chip model
- IPQ-4019
- LTE Category
- 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
- LTE FDD bands
- 2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 7 (2600MHz) / 12 (700MHz) / 13 (700 MHz) / 25 (1900MHz) / 26 (850MHz) / 30 (2300 MHz) / 66 (1700MHz) / 29 (700 MHz)
- Wireless 5 GHz Max data rate
- 867 Mbit/s
- Wireless 2.4 GHz generation
- Wi-Fi 4
- Wireless 5 GHz generation
- Wi-Fi 5
- Certification
- CE, FCC, EAC, ROHS
- Mode button
- Yes
