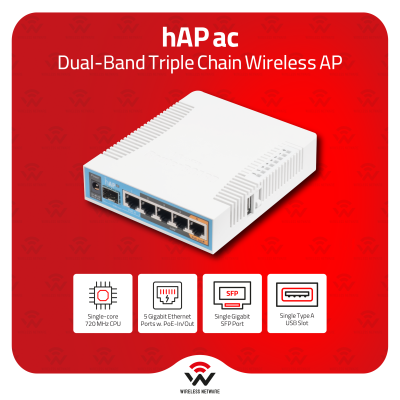

MikroTik hAP ac AC1750 5×GbE SFP USB PoE-out
The MikroTik hAP ac (RB962UiGS-5HacT2HnT) is a dual-band dual-concurrent Wi-Fi 4/5 desktop router — QCA9558 single-core MIPSBE at 720 MHz, 128 MB RAM, 16 MB flash, RouterOS v7 License 4, 2.4 GHz Wi-Fi 4 3×3 MIMO 450 Mbps (2.5 dBi) + 5 GHz Wi-Fi 5 AC1750 3×3 MIMO 1300 Mbps (2 dBi), 5× GbE, 1× SFP, 1× USB Type-A (3G/4G modem or storage), passive PoE-out on Ether5 (700 mA low / 350 mA high), dual power input (DC jack 11–57V + passive PoE-in 11–57V), 17W max, beeper, PCB temperature + voltage monitors, passive cooling, IP20, 114 × 137 × 29 mm, -40°C to +70°C, MTBF ~200,000 hours at 25°C. CE, FCC, IC, EAC, RoHS. Includes 24V 1.2A power adapter. Free software updates for life of product or minimum 5 years from purchase.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik hAP ac is a dual-band dual-concurrent desktop router — 2.4 GHz Wi-Fi 4 and 5 GHz Wi-Fi 5 AC1750 running simultaneously, 5× GbE, SFP, USB, and passive PoE-out on a single RouterOS v7 platform for home, office, or public location deployments.
**Dual-concurrent AC1750 — 2.4 GHz Wi-Fi 4 + 5 GHz Wi-Fi 5 simultaneously**
2.4 GHz QCA9558 delivers 3×3 MIMO 450 Mbps with 2.5 dBi omnidirectional antennas — backward compatible with 802.11b/g/n legacy clients. 5 GHz QCA9880 delivers 3×3 MIMO 1300 Mbps 802.11ac (Wi-Fi 5) with 2 dBi antennas — AC1750 aggregate. Both radios operate concurrently. International version (RB962UiGS-5HacT2HnT) supports 2412–2484 MHz and 5150–5875 MHz — full frequency range for Canadian deployment.
**1× SFP + 1× USB — fiber uplink and 3G/4G failover**
SFP cage accepts active or passive optical modules for fiber uplink to ISP or core switch. USB Type-A port (1A) supports 3G/4G modems for WAN failover and USB storage for data logging or RouterOS backup. USB Power Reset allows software-controlled modem reboot from RouterOS without physical access.
**Passive PoE-out on Ether5 — power downstream RouterBOARD devices**
Ether5 delivers passive PoE-out (700 mA low voltage / 350 mA high voltage) — powers MikroTik wAP, mAP, or SXT units at the last port without a separate PoE injector.
**IC certified — Canadian market ready**
CE, FCC, IC, EAC, RoHS — confirmed ISED certification for compliant dual-band wireless sale and deployment across Canada. International frequency range (2412–2484 MHz / 5150–5875 MHz) — not the US-locked variant.
- Product code
- RB962UiGS-5HacT2HnT
- Architecture
- MIPSBE
- CPU core count
- 1
- CPU nominal frequency
- 720 MHz
- Operating System
- RouterOS
- Size of RAM
- 128 MB
- Storage size
- 16 MB
- Storage type
- FLASH
- Tested ambient temperature
- -20C .. +60C
- Number of DC inputs
- 2 (DC jack, PoE-IN)
- DC jack input Voltage
- 11-57 V
- Max Power consumption
- 17
- Max power consumption without attachments
- 17W
- PoE in
- Passive PoE
- PoE in input Voltage
- 11-57 V
- PoE out
- Passive PoE
- Max out per port output - input (less than 30 V)
- 700 mA
- Max out per port output (input more than 30 V)
- 0 mA
- Max total out (A)
- 700 mA
- 10/100/1000 Ethernet ports
- 5
- Dimensions
- 114 x 137 x 29mm
- SFP ports
- 1
- Number of USB ports
- 1
- USB Power Reset
- Yes
- USB slot type
- USB type A
- Max USB current (A)
- 1
- Voltage Monitor
- Yes
- PCB temperature monitor
- Yes
- Wireless 2.4 GHz number of chains
- 3
- Wireless 2.4 GHz standards
- 802.11b/g/n
- Antenna gain dBi for 2.4 GHz
- 2.5
- Wireless 2.4 GHz chip model
- QCA9558
- Wireless 5 GHz number of chains
- 3
- Wireless 5 GHz standards
- 802.11a/n/ac
- Antenna gain dBi for 5 GHz
- 2
- Wireless 5 GHz chip model
- QCA9880
