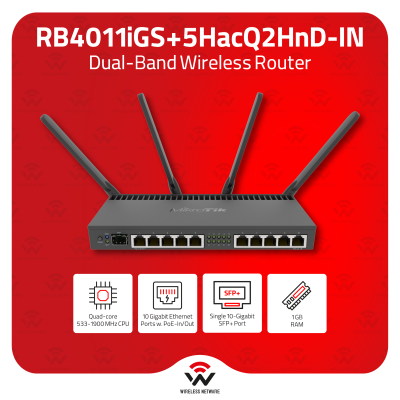

MikroTik RB4011iGS+5HacQ2HnD-IN 10-Port Gigabit Dual-Band 2.4/5GHz 802.11ac Router with SFP+
The MikroTik RB4011iGS+5HacQ2HnD-IN is a powerful indoor router combining ten Gigabit Ethernet ports, a 10Gbps SFP+ cage, and integrated dual-band 802.11ac Wi-Fi in a single desktop unit. At its core is a quad-core Cortex A15 AL21400 processor — the same architecture used in MikroTik's carrier-grade hardware — paired with 1 GB of RAM and hardware-accelerated IPsec, delivering serious routing performance for demanding environments. The 5GHz four-chain radio delivers up to 1733 Mbit/s (Wi-Fi 5), while the 2.4GHz two-chain radio adds 300 Mbit/s 802.11n coverage. Running RouterOS v7 with a MiniPCI-e expansion slot, passive PoE output on port 10, and dual power input options.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik RB4011iGS+5HacQ2HnD-IN is part of MikroTik's RB4011 series — a family of routers built around carrier-grade processing power in a compact desktop form factor. The Wi-Fi model adds integrated dual-band 802.11ac wireless, making it a comprehensive all-in-one networking platform for high-demand environments.
Processing Power & IPsec Hardware Acceleration
The unit is powered by the AL21400 quad-core Cortex A15 CPU, running at auto-scaling frequencies between 533 and 1900 MHz on the ARM 32-bit architecture. This is the same CPU family found in MikroTik's carrier-grade RB1100AHx4. Paired with 1 GB of RAM and 512 MB of NAND storage, the RB4011 delivers exceptional routing throughput — Ethernet test results show fast-path bridging and routing throughput of up to 9,792.9 Mbps at 1518-byte packets. Hardware-accelerated IPsec enables over 1 Gbps of encrypted VPN throughput at 1400-byte packets (AES-128-CBC + SHA1), making it capable of handling demanding VPN deployments without CPU bottlenecks.
Ethernet & SFP+ Connectivity
Ten 10/100/1000 Gigabit Ethernet ports provide ample wired connectivity, managed by the RTL8367SB switch chip. A dedicated SFP+ cage supports 10Gbps fibre or DAC connections, providing a high-speed uplink path to fibre infrastructure, core switches, or data centre equipment. This combination of ten Gigabit ports and a 10G SFP+ cage makes the RB4011 highly versatile for both LAN distribution and high-speed uplink scenarios.
Dual-Band 802.11ac Wireless
The integrated wireless system is rated AC2000, combining a four-chain 5GHz 802.11a/n/ac (Wi-Fi 5) radio using the QCA9984 chip — delivering up to 1733 Mbit/s — with a two-chain 2.4GHz 802.11b/g/n (Wi-Fi 4) radio using the R11e-2HnD module, delivering up to 300 Mbit/s. The 5GHz receive sensitivity ranges from -96 dBm at 6 Mbit/s to -72 dBm at MCS9, while 2.4GHz sensitivity spans -100 dBm at 1 Mbit/s to -79 dBm at MCS7. The international version supports 2412–2484 MHz and 5150–5875 MHz; the US version is factory-locked to 2412–2462 MHz, 5170–5250 MHz, and 5725–5835 MHz.
PoE Output & Power Options
Ethernet port 10 provides passive PoE output of up to 57 V, with a low-voltage current limit of 600 mA and a high-voltage limit of 420 mA, allowing a single downstream PoE device to be powered directly from the router. The unit itself can be powered via a DC jack (12–57 V) or passive PoE input (18–57 V), with a maximum power consumption of 44 W (23 W without attachments). Passive cooling keeps the unit silent.
Expansion & Management
A MiniPCI-e slot provides the option to add additional radio or interface cards. An RJ45 serial console port allows out-of-band management access. On-board PCB temperature and voltage monitors aid in health monitoring. The unit ships with RouterOS v7 pre-installed and licensed — no additional software purchase is required.
Build & Form Factor
The RB4011iGS+5HacQ2HnD-IN is a desktop indoor unit (IP20) measuring 228 × 120 × 30 mm, designed for rack-shelf or desktop placement. MTBF is approximately 200,000 hours at 25°C. The operating temperature range is -40°C to 45°C. The package includes a 24V 2.5A power adapter, an IEC power cord, and a K-59 mounting kit.
Use Cases
The RB4011iGS+5HacQ2HnD-IN is well suited for enterprise and SMB offices requiring high-throughput routing with integrated Wi-Fi, ISP customer edge routers where VPN performance and a fibre uplink are essential, home lab and power-user environments, and any deployment where carrier-grade CPU performance is needed alongside multi-port Gigabit switching and 10G uplink capability.
Key Specifications at a Glance
- Product Code: RB4011iGS+5HacQ2HnD-IN
- CPU: AL21400 Quad-core Cortex A15, 533–1900 MHz (auto), ARM 32-bit
- RAM: 1 GB
- Storage: 512 MB NAND
- Gigabit Ethernet Ports: 10x 10/100/1000
- SFP+ Port: 1x 10Gbps
- Switch Chip: RTL8367SB
- 5GHz Wireless: 802.11a/n/ac (Wi-Fi 5), 4-chain, up to 1733 Mbit/s (QCA9984)
- 2.4GHz Wireless: 802.11b/g/n (Wi-Fi 4), 2-chain, up to 300 Mbit/s (R11e-2HnD)
- Wi-Fi Speed Rating: AC2000
- PoE Output: Port 10, passive PoE up to 57 V (600 mA low voltage / 420 mA high voltage)
- Power Input: DC jack 12–57 V / Passive PoE 18–57 V
- Max Power Consumption: 44 W (23 W without attachments)
- MiniPCI-e Slots: 1
- Serial Console: RJ45
- Operating System: RouterOS v7 (pre-installed and licensed)
- IPsec Hardware Acceleration: Yes (>1 Gbps throughput)
- Operating Temperature: -40°C to 45°C
- Dimensions: 228 × 120 × 30 mm
- Weather Rating: IP20 (indoor)
- Cooling: Passive
- MTBF: ~200,000 hours at 25°C
- Certifications: CE, FCC, IC, EAC, RoHS
- Included: 24V 2.5A power adapter, IEC cord, K-59 kit
- Product code
- RB4011iGS+5HacQ2HnD-IN
- Architecture
- ARM 32bit
- CPU core count
- 4
- CPU nominal frequency
- 1.4 GHz
- Operating System
- RouterOS
- Size of RAM
- 1 GB
- Storage size
- 512 MB
- Storage type
- NAND
- Tested ambient temperature
- -40°C .. +45°
- Number of DC inputs
- 2 (DC jack, PoE-IN)
- DC jack input Voltage
- 12-57 V
- Max Power consumption
- 55
- Max power consumption without attachments
- 26W
- PoE in
- Passive PoE
- PoE in input Voltage
- 18-57 V
- PoE out
- Passive PoE up to 57V
- Max out per port output - input (less than 30 V)
- 600 mA
- Max out per port output (input more than 30 V)
- 420 mA
- Max total out (A)
- 600 mA
- 10/100/1000 Ethernet ports
- 10
- Dimensions
- 228 x 120 x 30 mm
- SFP+ ports
- 1
- Serial port
- RJ45
- Voltage Monitor
- Yes
- PCB temperature monitor
- Yes
- Wireless 2.4 GHz number of chains
- 2
- Wireless 2.4 GHz standards
- 802.11b/g/n
- Antenna gain dBi for 2.4 GHz
- 3
- Wireless 2.4 GHz chip model
- R11e-2HnD
- Wireless 5 GHz standards
- 802.11ac
- Antenna gain dBi for 5 GHz
- 3
- Wireless 5 GHz chip model
- QCA-9984
- MiniPCI-e slots
- 1
