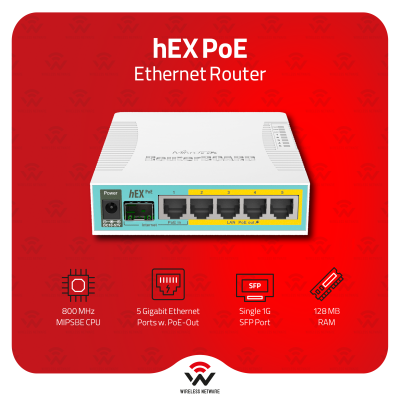

MikroTik RB960PGS hEX PoE 5-Port GbE 4x PoE-Out SFP USB Router
The MikroTik hEX PoE (RB960PGS) is a compact, affordable five-port Gigabit Ethernet router designed for locations where wireless connectivity is not required. Powered by an 800MHz QCA9557 MIPSBE CPU and 128MB of RAM, it handles all RouterOS L4 features including advanced routing, firewalling, and traffic management with ease. Four of its five Gigabit Ethernet ports (Ether2–5) deliver passive PoE or 802.3af/at PoE output at up to 1A per port, allowing it to power connected access points, IP cameras, or other PoE devices directly — eliminating the need for separate PoE injectors. An SFP port adds fibre uplink capability, while a USB 2.0 Type-A port (with power reset) supports modems, storage devices, or other USB peripherals. Passively cooled and built to operate from -40°C to +60°C.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The hEX PoE is built around the Qualcomm Atheros QCA9557 single-core MIPSBE CPU running at 800MHz, paired with 128MB of RAM and 16MB of FLASH storage for the RouterOS system. The QCA8337 switch chip handles Ethernet switching across the five Gigabit ports. Despite its compact size and modest price point, the 800MHz CPU is capable of handling the full range of RouterOS L4 features including advanced routing protocols, NAT, firewalling, queuing, and VPN configurations.
Gigabit Ethernet Ports with PoE Output
The hEX PoE features five 10/100/1000 Mbps shielded Gigabit Ethernet ports. Ports 2 through 5 support PoE output, passing through the same voltage applied to the unit in passive mode, or providing 802.3af/at standard PoE output for compatible devices. The per-port current limit is 1A at low voltage and 450mA at high voltage, with a maximum combined PoE-out of 2A across all active PoE ports. This makes it straightforward to power up to four PoE-capable devices — such as wireless access points or IP cameras — directly from the router without the need for additional PoE injectors or switches. Total maximum power consumption under full PoE load is 54W; the router itself draws only 6W without any attached PoE devices.
SFP Port
A single SFP port provides the option to add optical fibre connectivity, making the hEX PoE suitable for deployments where the router needs to uplink via fibre to a provider or a remote switch — useful in multi-building environments or where long-distance copper runs are not practical.
USB Port
A USB 2.0 Type-A port with USB Power Reset support adds versatility, allowing the connection of a 3G/4G USB modem for failover or primary WAN, a USB storage device for RouterOS file storage or logging, or other compatible USB peripherals. The port supports up to 1A of output current.
Powering Options
The hEX PoE accepts power via two inputs: a DC jack (12–57V) and passive PoE-in on Ether1 (12–57V), giving flexibility for powering from a standard adapter or from an upstream passive PoE injector or switch. A 24V 2.5A power adapter and an IEC cord are included in the box. Cooling is fully passive — completely fanless — making the unit silent in operation.
Monitoring
The hEX PoE includes a PCB temperature monitor, a voltage monitor, and a beeper, providing RouterOS-accessible health monitoring for the unit's operating conditions.
Software
The device runs RouterOS with a Level 4 licence, pre-installed and fully licenced with no additional purchase required. RouterOS L4 covers the full feature set needed for most small to medium business and remote office deployments, including BGP, OSPF, firewall, NAT, VPN, bandwidth management, and more.
Build and Suitability
The hEX PoE is built in a compact desktop plastic enclosure with an IP20 rating, suitable for standard indoor environments. Its tested operating temperature range of -40°C to +60°C and MTBF of approximately 100,000 hours at 25°C make it reliable for long-term deployment in office, retail, and equipment cabinet settings.
Use Cases
The hEX PoE is ideal for small office and remote branch deployments needing a capable wired router with integrated PoE, scenarios where wireless is handled by dedicated access points powered over the router's PoE ports, multi-building or campus setups requiring a fibre uplink via the SFP port, and installations where a small, silent, passively cooled router is preferred over a larger managed device.
Key Specifications at a Glance
- Product Code: RB960PGS
- Architecture: MIPSBE
- CPU: QCA9557, Single-Core, 800MHz
- Switch Chip: QCA8337
- RAM: 128MB
- Storage: 16MB FLASH
- Operating System: RouterOS
- RouterOS Licence: Level 4
- Gigabit Ethernet Ports: 5 × 10/100/1000 Mbps (shielded)
- SFP Port: 1
- USB Port: 1 × USB 2.0 Type-A (with Power Reset, max 1A)
- PoE Out: 802.3af/at on Ether2–Ether5 (passive pass-through or 802.3af/at); 1A per port (low voltage) / 450mA (high voltage); 2A total max
- PoE In: Passive PoE 12–57V on Ether1
- DC Input: 12–57V via DC jack
- Max Power Consumption: 54W (6W without attachments)
- Included Power Supply: 24V 2.5A power adapter + IEC cord
- Cooling: Passive (fanless)
- Monitoring: PCB temperature monitor, voltage monitor, beeper
- MTBF: ~100,000 hours at 25°C
- Tested Ambient Temperature: -40°C to +60°C
- IP Rating: IP20
- Certifications: CE, EAC, RoHS
- Included Parts: 24V 2.5A power adapter, IEC cord
- Product code
- RB960PGS
- Architecture
- MIPSBE
- CPU core count
- 1
- CPU nominal frequency
- 800 MHz
- Size of RAM
- 128 MB
- Storage size
- 16 MB
- Storage type
- FLASH
- Tested ambient temperature
- -40 + 70 C
- Number of DC inputs
- 2 (DC jack, PoE-IN)
- DC jack input Voltage
- 12-57 V
- Max Power consumption
- 9W
- PoE in
- Passive PoE
- PoE in input Voltage
- 12-57 V
- PoE out
- 802.3af/at
- 10/100/1000 Ethernet ports
- 5
- SFP ports
- 1
- Number of USB ports
- 1
- USB Power Reset
- Yes
- USB slot type
- USB type A
- Max USB current (A)
- 1
- Voltage Monitor
- Yes
- PCB temperature monitor
- Yes
