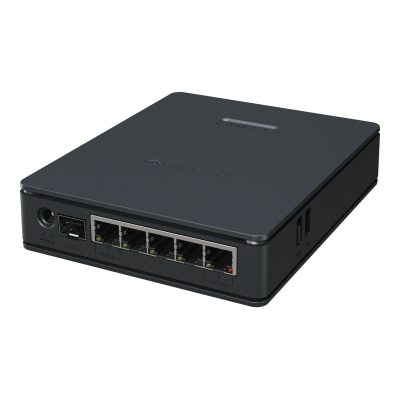

MikroTik hAP ax S – Wi-Fi 6 Access Point with 2.5G SFP & PoE
zoom_out_map
chevron_left chevron_right

hAP ax S

Our most cost-effective Wi-Fi 6 access point yet. Triple-chain 5 GHz radio (up to 900 Mbit/s throughput), dual-band Wi-Fi 6, 5x Gigabit Ethernet ports, and a 2.5G SFP. Powered by a dual-core ARM CPU, with PoE-in/PoE-out flexibility, a standard DC jack, USB, and a sturdy high-end enclosure that can be mounted on the wall.

US$79.00

US$79.00 Tax excluded

Be sure to check availability date
check Available!
US/Canada
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

Meet the new hAP ax S – our most cost-effective Wi-Fi 6 access point yet. It costs far less than most mid-range, mass-produced routers… while delivering far more flexibility and longevity right out of the box! Under the sleek exterior lies a dual-core ARM CPU, dual-band Wi-Fi 6, USB 2.0, five Gigabit Ethernet ports, and a 2.5 Gigabit SFP cage. You can connect direct fiber-to-home or link up a high-speed NAS for lightning-fast local access.

Triple-chain 5 GHz: the key to stable, gigabit-class Wi-Fi

The new hAP ax S features a triple-chain 5 GHz radio that achieves real-worldthroughput of around 800–900 Mbit/s. That means smooth streaming, fasterdownloads, and stable performance across multiple devices – even in crowdedenvironments.It’s also perfect as a dedicated Wi-Fi 6 VR streaming access point for PC VRheadsets, offering higher resolution and lower latency without the cables.Unlike single-purpose “gaming” access points, the hAP ax S gives you the fullperformance, flexibility, and future-proofing of RouterOS v7!

Enjoy dual powering options – DC jack or PoE-in – and a passive PoE-out port to power another MikroTik device, such as an additional AP or a compact desktop switch. This makes it ideal for both home setups and small offices where clean cable management matters.

Your network, your rules

Despite the low price, the hAP ax S runs a full version of RouterOS v7, the most flexiblenetworking software on the market.In the age of growing data security and privacy challenges, RouterOS gives you completecontrol – with no subscriptions, no upsells, no locked features. Whether you’re configuringyour first Wi-Fi network through the MikroTik app or building complex topologies, RouterOS v7grows with you.VLANs, firewalls, VPN tunnels, traffic shaping, scripting, SMS automation – the possibilities areendless. For example: you can easily isolate IoT devices into separate subnets to protect yourhome network from unwanted access via the smart fridge or those flashy LED light hubs.

Ethernet test results

E62iUGS-2axD5axT EN7562CT 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 340.3 4132.4 389 1593.5 402.6 219
Bridging 25 bridge filter rules 190.6 2315.1 197 806.8 193.9 105.5
Routing none (fast path) 300.3 3646.6 340.5 1394.7 342.2 186.1
Routing 25 simple queues 173.1 2102.6 174.3 713.8 171.9 93.5
Routing 25 ip filter rules 117.8 1430.3 121.6 498.1 117 63.6
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

E62iUGS-2axD5axT EN7562CT IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 31.4 351.7 34.8 142.5 37.2 20.2
256 tunnels AES-128-CBC + SHA1 16.8 188.2 17.6 72.1 18.5 10.1
256 tunnels AES-128-CBC + SHA256 16.9 189.3 17.9 73.3 18.7 10.2
256 tunnels AES-256-CBC + SHA1 16.8 188.2 17.6 72.1 18.7 10.2
256 tunnels AES-256-CBC + SHA256 16.9 189.3 17.9 73.3 18.9 10.3
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 24 -100
11MBit/s 24 -94
6MBit/s 23 -96
54MBit/s 21 -80
MCS0 22 -96
MCS7 20 -75
MCS9 19 -70
MCS11 15 -67

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 23 -96
54MBit/s 21 -81
MCS0 23 -96
MCS7 20 -77
MCS9 20 -72
MCS11 18 -69

MikroTik
E62iUGS-2axD5axT
New
148 Items
4752224003362
Product code
RB962UiGS-5HacT2HnT
CPU architecture
ARM 32bit
CPU
Dual-Core EN7562CT 950 MHz
Switch chip model
EN7562CT
Operating System
RouterOS v7, License level 4
Size of RAM
512 MB
Storage size
128 MB NAND
Number of DC inputs
2 (DC jack, PoE-In)
DC jack input Voltage
12-28 V
Max Power consumption
34 W
Max power consumption without attachments
11 W
PoE in
Passive PoE
PoE in input Voltage
18-28 V
PoE out ports
Ether5
PoE out
Passive PoE
Max out per port output - input (less than 30 V)
0.6 A
Total output power
16.8 W
Dimensions
156 x 127 x 36 mm
USB slot type
1 USB type A
Wireless 2.4 GHz number of chains
2
Antenna gain dBi for 2.4 GHz
5.5 dBi
Wireless 5 GHz number of chains
3
Antenna gain dBi for 5 GHz
8 dBi
Operating Temperature
-40°C to +70°C
Wireless Standards
2.4 GHz / 5 GHz
RAM type
DDR3
Number of 1G Ethernet ports
5
Wireless interface model
MT7916 / MT7976
Power adapter nominal voltage
24 V
Power adapter nominal current
1.5 A
Protocols
802.11b/g/n/ax - 802.11a/n/ac/ax
Number of 1G SFP ports
1 (2.5G supported)

General information
