MikroTik hEX S 2025 2.5G SFP Wired Router PoE USB

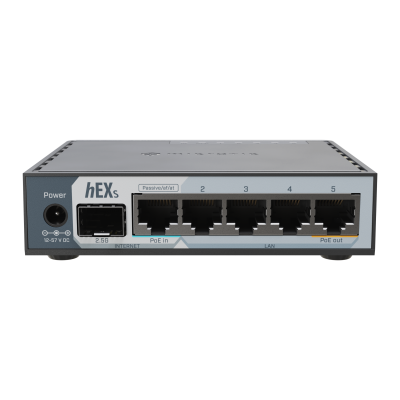

The MikroTik hEX S (2025) (E60iUGS) is the most capable compact wired router MikroTik has built a ground-up 2025 refresh with a new dual-core EN7562CT ARM CPU at 950 MHz, 512 MB RAM, EN7523 switch chip, 5× Gigabit Ethernet (PoE-in on Ether1, Passive PoE-out on Ether5), a 2.5G SFP cage for multi-gigabit uplinks, USB 3.0 with USB Power Reset, flexible dual power inputs (DC jack and 802.3af/at PoE-in, 12–57V), wall-mountable design, and RouterOS v7 License Level 4. For home labs, smart offices, small businesses, and anyone with a multi-gigabit fiber plan who needs a proper router — not an ISP plastic box, the hEX S 2025 is the answer.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik hEX S (2025) is proof that serious routing capability does not require a serious budget. It delivers a feature set that most consumer routers in the price range cannot match — and does it in a compact, wall-mountable enclosure that fits anywhere.
The 2.5G SFP cage is the headline upgrade that makes the hEX S 2025 relevant for modern internet plans. Multi-gigabit fiber is now available from major Canadian ISPs including Bell and Rogers in most urban markets. Consumer routers with only Gigabit WAN ports cap your usable speed at 1 Gbps regardless of your plan tier. The hEX S 2025 breaks that ceiling — connect a 2.5G SFP module to your ISP fiber hand-off and deliver the full speed of a 2 Gbps+ fiber plan to your network without a bottleneck at the router.
The port bonding support across the 5× Gigabit Ethernet ports opens a practical use case that MikroTik targets directly: bond two 1G ports to your NAS and get 2 Gbps of effective throughput for large file transfers, video editing workloads, and backup jobs — without buying a 2.5G NAS adapter. For creators, editors, and researchers who move large files regularly.
Every port on the hEX S 2025 is assignable — any port can be WAN, LAN, or bridge. There is no fixed WAN port, no locked-down interface, no ISP firmware restriction. RouterOS v7 is the operating system, which means full VLAN support, advanced firewall rules, traffic shaping, BGP, OSPF, MPLS, SNMP, scripting, and a feature depth that most consumer routers do not approach.
The dual power inputs (DC jack 12–57V and 802.3af/at PoE-in 18–57V) make the hEX S 2025 deployable in virtually any installation — desktop, wall-mount, or PoE-powered from an upstream switch with no separate power adapter needed. Passive PoE-out on Ether5 (up to 57V, 0.5A) powers a downstream access point, IP camera, or IoT device directly from the router.
Key features:
- 1× 2.5G SFP cage — multi-gigabit fiber uplink for 2 Gbps+ ISP plans (SFP module not included)
- 5× 10/100/1000 Mbps Gigabit Ethernet — full port assignment flexibility (any port = WAN/LAN/bridge)
- Port bonding support — bond two 1G ports for 2 Gbps effective throughput to NAS or downstream devices
- PoE-in on Ether1 — 802.3af/at, 18–57V — power the router from an upstream PoE switch, no adapter needed
- Passive PoE-out on Ether5 — up to 57V, 0.5A — power a downstream AP, camera, or IoT device
- Dual-core EN7562CT ARM 32-bit CPU, 950 MHz, 512 MB RAM, 128 MB NAND, EN7523 switch chip
- USB 3.0 Type-A port (up to 1A, USB Power Reset) — storage, file sharing, configuration backups
- DC jack power input 12–57V, max 23W (5W without attachments)
- Passive cooling, -40°C to +70°C
- CPU temperature monitor, PCB temperature monitor, voltage monitor
- Mode button
- Wall-mountable design — compact form factor for desk, wall, or cabinet installation
- RouterOS v7, License Level 4 — VLANs, advanced firewall, BGP, OSPF, MPLS, traffic shaping, SNMP, scripting — no subscriptions, no locked features, free updates for life (minimum 5 years)
- Certified CE, EAC, RoHS | IP20
- MTBF ~100,000 hours at 25°C
In the box: 24V 1.2A power adapter.
Ideal for: home labs and power users replacing their ISP router with a proper RouterOS platform; small offices needing full VLAN, firewall, and traffic shaping on a tight budget; content creators and video editors bonding ports to a NAS for 2 Gbps local file transfer; anyone on a Bell or Rogers multi-gigabit fiber plan needing a 2.5G-capable router at an accessible price; remote workers requiring serious VPN and firewall control without enterprise pricing; and any wired network deployment where RouterOS v7 capability.
- Product code
- E60iUGS
- CPU
- Dual-Core EN7562CT 950 MHz
- Switch chip model
- EN7562CT
- Operating System
- RouterOS v7, License level 4
- Size of RAM
- 512 MB
- Storage type
- 128 MB, NAND
- Number of DC inputs
- 2 (DC jack, PoE-In)
- DC jack input Voltage
- 12-57 V
- Max Power consumption
- 23 W
- Max power consumption without attachments
- 5 W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 18-57 V
- PoE out ports
- Ether5
- PoE out
- Passive PoE up to 57V
- Max out per port output - input (less than 30 V)
- 0.5 A
- Max out per port output (input more than 30 V)
- 0.5 A
- Dimensions
- 113 x 89 x 28 mm
- Number of USB ports
- 1 type A
- Operating Temperature
- -40°C to +70°C
- RAM type
- DDR3
- Number of 1G Ethernet ports with PoE-out
- 5
- Power adapter nominal voltage
- 24 V
- Power adapter nominal current
- 1.2 A
- Number of 1G SFP ports
- 1 (2.5G supported)
- Smart PoE
- Injector
