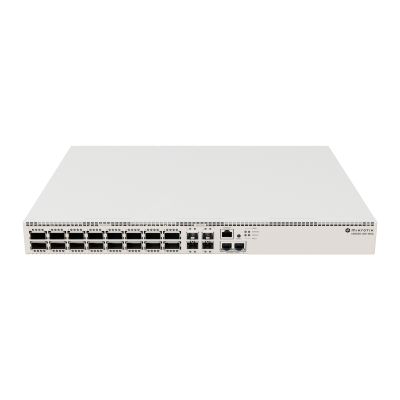

MikroTik CRS520-4XS-16XQ-RM 16×100G QSFP28 Core Switch
The MikroTik CRS520-4XS-16XQ-RM is a high-density, enterprise-grade 100G core switch combining the switching power of a Marvell 98CX8410 chip with the processing muscle of a quad-core 64-bit ARM CPU running at 2 GHz and 4 GB of RAM. It provides 16 × 100G QSFP28 ports, 4 × 25G SFP28 ports, and 2 × 10G Ethernet ports, running RouterOS v7 for advanced Layer 2 and Layer 3 network management. Two hot-swap power supplies and four hot-swap fans are included as standard, making it a resilient, future-proof solution for data centre and enterprise core network deployments.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik CRS520-4XS-16XQ-RM is a rack-mounted 100G core switch built for demanding enterprise and data centre environments. At its heart is a Marvell 98CX8410 switch chip paired with an AL52400 quad-core ARM 64-bit CPU running at 2 GHz — the same class of processor found in MikroTik's CCR series routers — backed by 4 GB of RAM and 128 MB of NAND storage. This combination delivers both wire-speed switching and the processing headroom needed for advanced software-driven network functions.
The port configuration consists of 16 × 100G QSFP28 ports, 4 × 25G SFP28 ports, and 2 × 10G Ethernet ports (supporting 10M/100M/1G/10G), along with an RJ45 serial console port for out-of-band management. This makes the CRS520 a versatile backbone switch capable of aggregating high-speed uplinks and interconnecting high-bandwidth network segments.
Running RouterOS v7, the CRS520 goes well beyond basic switching. It supports OSPF/BGP dynamic routing, out-of-band and management VPNs, Access Control Lists, Jumbo Frame support, hardware-accelerated Layer 3 routing (L3HW), and the full RouterOS feature set — all manageable through WinBox, the web interface, or CLI. As MikroTik notes, the powerful CPU also provides a future-proofing advantage, as Marvell continues to expand the capabilities of the switch silicon through software updates.
Reliability features include two hot-swap power supplies (with two PSU slots) and four hot-swap fans for cooling, both replaceable without powering down the unit. AC input accepts 100–240 V at 50–60 Hz, with maximum power consumption of 150 W (single PSU) or 220 W with both PSUs installed. Hardware health monitoring covers CPU temperature, PCB temperature, and voltage.
The device ships with 2× IEC cords, rackmount ears, rackmount rear support ears, cable management brackets, and a K-82 fastening set. RouterOS v7 is pre-installed and licensed — no separate purchase is required.
Key Specifications at a Glance
- Product Code: CRS520-4XS-16XQ-RM
- Architecture: ARM 64-bit
- CPU: AL52400 quad-core @ 2 GHz
- Switch Chip: 98CX8410
- RAM: 4 GB
- Storage: 128 MB NAND
- Operating System: RouterOS v7
- 100G QSFP28 Ports: 16
- 25G SFP28 Ports: 4
- 10G Ethernet Ports: 2 (supports 10M/100M/1G/10G)
- Serial Console Port: RJ45
- PSU Slots: 2 (both hot-swap)
- Cooling: 4× hot-swap fans
- AC Input: 100–240 V, 50–60 Hz
- Max Power Consumption: 150 W (single PSU) / 220 W (dual PSU)
- Max Power Consumption Without Attachments: 123 W
- CPU Temperature Monitor: Yes
- PCB Temperature Monitor: Yes
- Voltage Monitor: Yes
- Tested Ambient Temperature: -20°C to 50°C
- MTBF: Approximately 200,000 hours at 25°C
- Certifications: CE, EAC, RoHS
- Included: 2× IEC cords, rackmount ears, rackmount rear support ears, cable management brackets, K-82 fastening set
- Product code
- CRS520-4XS-16XQ-RM
- Architecture
- ARM 64bit
- CPU nominal frequency
- Quad-Core AL52400 2 GHz
- Switch chip model
- 98CX8410
- RouterOS License
- License level 5
- Size of RAM
- 4 GB
- Storage size
- 128 MB, NAND
- Tested ambient temperature
- -20°C to 50°C
- Max Power consumption
- 183 W
- Max power consumption without attachments
- 123 W
- Number of AC inputs
- 2
- AC input range
- 100-240 V
- 1G/2.5G/5G/10G RJ45 Ethernet ports
- 2
- RAM type
- DDR4
- Number of 25G SFP28 ports
- 4
- Number of 100G QSFP28 ports
- 16
- Nominal current
- 10.25 A
