MikroTik CRS304-4XG-IN 4-Port 10GbE Router SwOS ROS

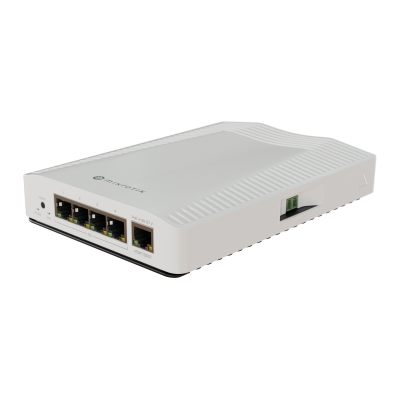

The MikroTik CRS304-4XG-IN is a compact 4-port 10 Gigabit Ethernet desktop switch and router — 4× RJ45 10GbE copper ports (no SFP, no SFP+), Marvell Prestera 98DX3236 switch chip, quad-core ARM64 AL21400 at 1,400 MHz, 1 GB RAM, 1 GB NAND, dual-boot SwOS and RouterOS v7 License 6, USB 3.0 Type-A, DC jack (18–28V), passive cooling, IP20, -20°C to +50°C, MTBF ~200,000 hours at 25°C. CE, EAC, RoHS certified. Includes 24V 1.2A power adapter. USD 199.00. The correct compact 10GbE desktop switch for homelab operators, small server rooms, and 10G-ready workstation deployments where RJ45 copper 10GbE connectivity is required without SFP+ cabling, transceivers, or rack infrastructure.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik CRS304-4XG-IN answers a specific connectivity problem that has become increasingly common as 10 Gigabit Ethernet moves from enterprise-only infrastructure into homelab and small server room deployments: four devices need 10GbE connectivity to each other and to an upstream 10G network, and the operator does not want to deal with SFP+ cabling, transceiver compatibility, or rack mounting. The CRS304's four RJ45 copper 10GbE ports connect directly to any device with a 10GBASE-T network interface — a workstation, a NAS, a server, an upstream switch — using standard Cat6a or Cat7 Ethernet cable, with no transceivers, no DAC cables, no fibre patch panels, and no rack ears required. Plug in, power on, configure in SwOS or RouterOS, done.
The four RJ45 10GbE ports are the entire port inventory — there are no Gigabit Ethernet management ports, no SFP+ uplinks, no combo ports. Every port on the CRS304 is a full 10GBASE-T copper port capable of 10G, 5G, 2.5G, 1G, 100M, and 10M operation depending on the connected device's capability. For a homelab with a mix of 10GbE workstations, 2.5GbE NAS devices, and 1GbE servers, the CRS304's ports auto-negotiate to the highest common speed — all four ports active simultaneously at their respective negotiated speeds, all switched at hardware line rate by the Marvell Prestera 98DX3236. No manual speed configuration is required for a mixed-speed deployment — the switch handles speed negotiation and switching across all active combinations automatically.
The dual-boot SwOS / RouterOS architecture is the feature that separates the CRS304 from every other compact 10GbE switch in its price range. Most compact 10GbE desktop switches in the USD 150–250 range are unmanaged or provide only a browser-based managed switch interface — they switch packets and provide basic VLAN and QoS, and nothing more. The CRS304 boots either SwOS (MikroTik's switch-focused managed OS, same as the CSS318 and FTC21) or RouterOS v7 on License 6 (MikroTik's full routing and network management platform, the highest licence tier in the home and office product line). The operator selects the operating mode at boot time — SwOS for pure Layer 2 managed switching, RouterOS for full routing, firewall, VPN, container, and advanced network management.
**SwOS mode** provides the full managed switch feature set: VLAN tagging and trunking, per-port bandwidth limiting, traffic mirroring, broadcast storm control, MAC filtering, SNMP monitoring, and the Layer 2 switching management capabilities consistent with the CSS318 and FTC21 in this product batch. For a homelab switch that needs VLAN segmentation between a server VLAN, a workstation VLAN, and a management VLAN across 4 ports at 10GbE line rate, SwOS handles this with hardware-accelerated switching at the Marvell Prestera ASIC level — no CPU overhead, no forwarding latency.
**RouterOS v7 mode** is where the CRS304 becomes something that no other compact 10GbE switch in this price range offers. RouterOS v7 on License 6 — the same licence tier as the Chateau PRO ax — provides:
- Full Layer 3 routing between the CRS304's 4 ports — inter-VLAN routing, static routes, OSPF, BGP, RIP without restriction
- Full firewall with stateful packet inspection, connection tracking, and Layer 7 protocol filtering
- WireGuard and IPsec VPN — site-to-site and remote access VPN termination directly on the 10GbE switch
- RouterOS v7 container support (Docker-compatible Linux containers on ARM64) — run Pi-hole, monitoring agents, custom services, or development containers on the CRS304 alongside its routing function
- Bandwidth management, QoS, traffic shaping, and queue trees at 10GbE line rate
- SNMP, The Dude network monitoring agent, scripting and automation via RouterOS scheduler and scripts
- Unlimited OSPF/BGP routes, tunnels, and hotspot users (License 6)
- All RouterOS v7 features available on ARM64 License 6
The container support on ARM64 License 6 RouterOS is specifically relevant for homelab operators who run Pi-hole for DNS ad-blocking, Grafana for network monitoring, or custom network services alongside their routing stack. The CRS304 running RouterOS v7 with containers active is a compact 10GbE router, firewall, VPN concentrator, and container host in a single fanless desktop device — a capability combination that is unique at USD 199.00.
The quad-core ARM64 AL21400 at 1,400 MHz with 1 GB RAM and 1 GB NAND is the hardware foundation for RouterOS mode. 1 GB RAM matches the Chateau PRO ax and provides the headroom required for active RouterOS v7 with container workloads, connection tracking under load, and BGP/OSPF routing table maintenance simultaneously. 1 GB NAND provides storage capacity for container images and RouterOS configuration backups — substantially more storage than the 128 MB NAND of the Chateau PRO ax and wAP ax. The ARM64 architecture enables the hardware-efficient cryptographic instruction handling that benefits WireGuard and IPsec VPN performance.
The USB 3.0 Type-A port extends the CRS304's storage capability in RouterOS mode — plug in a USB 3.0 SSD or flash drive for additional container image storage, RouterOS configuration backup, or file server capability via RouterOS's SMB/NFS server. USB Power Reset is supported — the RouterOS USB power cycle function can be used to remotely power-cycle a connected USB device without physically accessing the unit.
The -20°C to +50°C operating temperature range is the most restrictive in this product batch — a lower limit of -20°C (versus -40°C for most MikroTik active devices) and an upper limit of +50°C (versus +70°C for most). The +50°C upper limit reflects the thermal constraints of the 10GBASE-T copper PHY circuitry — 10GbE RJ45 transceivers generate significant heat at full link speed on all four ports, and passive cooling limits the maximum ambient temperature the device can sustain. For indoor server room and homelab deployments with standard HVAC, -20°C to +50°C covers all standard conditions. For installations in unventilated enclosures, above-ceiling spaces, or equipment rooms without air conditioning in Canadian summer conditions, confirm that the ambient temperature at the CRS304's installation location does not exceed +50°C.
Maximum power consumption is 30W — the highest of any device in this product batch. The 10GBASE-T copper PHY is the reason: four active 10GbE RJ45 ports generate substantially more heat and consume substantially more power than SFP+ fibre or DAC connections at the same throughput. For a homelab or server room deployment where the CRS304 runs continuously, 30W represents approximately 263 kWh per year at full load — a meaningful electricity cost at Canadian retail rates. For cost-sensitive deployments, note that the CRS304's power draw at 2.5GbE or 1GbE link speeds on all ports is lower than at full 10GbE — the PHY scales power with link speed.
The 24V 1.2A power adapter is included — the DC jack input range is 18–28V. For rack-integrated deployments where a central DC power bus is available, the 18–28V DC jack input allows the CRS304 to be powered from a 24V DC distribution rail without the included AC adapter. For standard desktop deployments, the included 24V adapter provides out-of-box power without additional hardware.
**Canadian market note:** Certifications published are CE, EAC, and RoHS — no FCC, no IC. The CRS304-4XG-IN is a wired Ethernet switch and router with no wireless transmitter. IC and FCC certification requirements for wired network equipment differ substantially from active wireless devices — the regulatory risk for a wired-only device is lower. Confirm Canadian regulatory compliance with your distributor before listing. No wireless advisory applies.
Key specifications:
- **Architecture:** ARM 64-bit
- **CPU:** AL21400, quad-core ARM64, 1,400 MHz
- **Switch chip:** Marvell Prestera 98DX3236
- **RAM:** 1 GB
- **Storage:** 1 GB NAND
- **OS:** SwOS / RouterOS v7 dual-boot, License 6
- **Ethernet:** 4× RJ45 10GbE (10G/5G/2.5G/1G/100M/10M)
- **USB:** 1× USB 3.0 Type-A, USB Power Reset
- **DC jack input:** 18–28V
- **Max power consumption:** 30W
- **Cooling:** Passive
- **IP rating:** IP20 (indoor installation only)
- **Operating temperature:** -20°C to +50°C
- **MTBF:** ~200,000 hours at 25°C
- **Monitors:** CPU temperature, PCB temperature, voltage
- **Mode button:** Yes
- **Certifications:** CE, EAC, RoHS — no FCC, no IC published
- **Included:** 24V 1.2A power adapter
- **Product code:** CRS304-4XG-IN
- **Suggested price:** USD 199.00
Note: 4× RJ45 10GbE copper only — no SFP, no SFP+, no fibre. IP20 — indoor installation only. Operating temperature upper limit +50°C — confirm ambient temperature at installation location. 30W max power draw — highest in this product batch. Passive PoE-in is NOT supported — DC jack only.
- Product code
- RS304-4XG-IN
- CPU architecture
- ARM 64bit
- Switch chip model
- 98DX2528
- Operating System
- RouterOS v7 only, License level 5
- Size of RAM
- 512 MB
- Storage size
- 32 MB, Flash
- Number of DC inputs
- 4 (2x DC jack, 2-pin terminal, PoE-In)
- DC jack input Voltage
- 12-57 V
- Max Power consumption
- 21 W
- Max power consumption without attachments
- 15 W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 36-57 V
- 10/100/1000 Ethernet ports
- 1
- Dimensions
- 176 x 128 x 35 mm
- 2-pin terminal input Voltage
- 12-57 V
- Operating Temperature
- -40°C to +70
- 1G/2.5G/5G/10G RJ45 Ethernet ports
- 4
- RAM type
- DDR4
