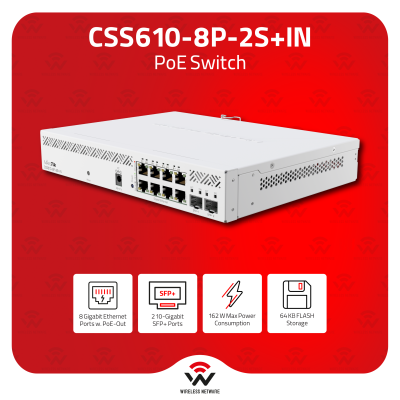

MikroTik CSS610-8P-2S+IN 8-Port PoE 10G SFP+ Switch
The MikroTik CSS610-8P-2S+IN is a compact managed PoE switch — Marvell 88E6193X switch ASIC, 64 KB FLASH, SwitchOS Lite, 8× Gigabit Ethernet with 802.3af/at + passive PoE-out (140W total budget, 1000 mA low-voltage / 625 mA high-voltage per port), 2× SFP+ (10G), AC input 100–240V + DC jack 48–57V, 162W max / 12W without attachments, passive cooling, IP20, -40°C to +70°C, MTBF ~200,000 hours at 25°C. CE, EAC, RoHS — no FCC, no IC. Includes rack ears, K-48 fastening set, IEC cord. USD 229.00. Browser-configurable managed PoE switch for home, SMB, hotel, call centre, and IP camera deployments.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik CSS610-8P-2S+IN is the PoE-out switch in MikroTik's CSS610 series — 8 Gigabit PoE-out ports, 2× SFP+ 10G uplinks, 140W total PoE budget, and SwitchOS Lite management, all in a compact passive-cooled enclosure at USD 229.00. It is the correct switch when PoE-out for IP phones, cameras, and wireless APs is the primary requirement and RouterOS complexity is not needed.
**Marvell 88E6193X — the managed switch ASIC**
The 88E6193X is a Marvell Prestera dedicated switch ASIC running SwitchOS Lite directly on its embedded controller — no separate CPU, no RouterOS, no dual-boot. SwitchOS Lite provides the managed switch feature set via a web browser UI: VLAN configuration, port-to-port forwarding control, broadcast storm control, MAC filtering, traffic mirroring, bandwidth limiting, and MAC/IP header field adjustment. For an SMB, hotel, or call centre deployment where a network administrator needs a straightforward managed switch UI without RouterOS CLI complexity, SwitchOS Lite's browser-based configuration is the correct operating model. MikroTik explicitly highlights this: "you can even configure this switch from your web browser."
**140W PoE budget — 8 ports, dual-mode PoE-out**
All 8 Gigabit Ethernet ports (Ether1–Ether8) support both 802.3af/at standards-based PoE-out and passive PoE-out simultaneously from a single PSU. The 140W total PoE budget distributes across all 8 ports — 17.5W average per port at full budget utilisation, with 802.3at (PoE+) delivering up to 30W per port where the budget allows. Per-port current limits: 1,000 mA on low-voltage passive PoE, 625 mA on high-voltage 802.3af/at. Practical deployment scenarios within the 140W budget:
- **8× 802.3af IP phones (15.4W each):** 123W total — within budget with headroom.
- **8× 802.3at wireless APs (25W each):** 200W total — exceeds budget; 5–6 APs at full 802.3at draw is the practical limit.
- **Mixed: 4× cameras (15.4W) + 4× APs (25W):** 162W total — over budget; reduce AP count or use 802.3af-only APs.
PoE budget planning is essential — the CSS610-8P-2S+IN's 140W budget is generous for an 8-port switch at this price, but mixed high-draw device deployments require per-port power allocation review before deployment.
**2× SFP+ uplinks — 10G fiber or DAC to aggregation**
The two SFP+ ports provide 10G uplinks to an aggregation switch, router, or server — connecting the CSS610-8P-2S+IN to a CRS310, CRS510, CRS518, or third-party 10G switch via SFP+ fiber transceivers or DAC cables. For a hotel floor or office floor deployment where each CSS610-8P-2S+IN serves one zone of PoE devices, the 2× SFP+ ports provide redundant 10G uplinks to the building aggregation layer via LACP bonding or active/standby failover.
**AC mains + DC jack — dual power input**
AC 100–240V mains input via IEC cord (included) is the primary power source — covering the 162W max consumption (140W PoE budget + 12W switch overhead) that a DC-only supply at this power level would struggle to deliver cost-effectively. The DC jack (48–57V) provides an alternative DC input for rack or cabinet deployments with DC power distribution. Passive cooling — no fans — is achievable at 12W idle; under full 140W PoE load, thermal management relies on the enclosure and ambient airflow.
**5-year software support guarantee:** SwitchOS Lite updates free for life of product or minimum 5 years from date of purchase.
**Canadian market note:** CE, EAC, RoHS only — no FCC, no IC (ISED) published. Wired switch, no wireless transmitter — no ISED wireless advisory applies. Confirm CSA/cUL electrical safety requirements with distributor before listing, particularly given the AC mains input at up to 162W.
Key specifications:
- **Product code:** CSS610-8P-2S+IN
- **Switch chip:** Marvell 88E6193X
- **Storage:** 64 KB FLASH
- **OS:** SwitchOS Lite
- **GbE PoE-out ports:** 8× (Ether1–Ether8, 802.3af/at + passive)
- **SFP+ ports:** 2× (10G)
- **PoE budget:** 140W total
- **PoE current limits:** 1,000 mA (low-voltage) / 625 mA (high-voltage)
- **AC input:** 100–240V, 50–60 Hz (IEC)
- **DC jack:** 48–57V
- **Max power:** 162W (12W without attachments)
- **Cooling:** Passive
- **IP rating:** IP20
- **Operating temp:** -40°C to +70°C
- **MTBF:** ~200,000 hours at 25°C
- **Certifications:** CE, EAC, RoHS — no FCC, no IC
- **Included:** Rack ears, K-48 fastening set, IEC cord
- **Suggested price:** USD 229.00
- Product code
- CSS610-8P-2S+IN
- Operating System
- SwOS
- Number of DC inputs
- 2 (PoE-in, DC jack)
- DC jack input Voltage
- 12-57 V
- Max Power consumption
- 162 W
- Max power consumption without attachments
- 12 W
- PoE in
- Passive PoE
- PoE in input Voltage
- 12-57 V
- PoE out
- 802.3af/at - Smart
- Dimensions
- 272 x 216 x 50 mm
- Operating Temperature
- -40°C to +70°C
- chipset
- 88E6193X
- Certification
- CE, FCC, IC
- Number of 10G SFP+ ports
- 2
- Number of 1G Ethernet ports
- 8
