SYNOXX 400G QSFP-DD to 2x200G QSFP56 DAC Cable
zoom_out_map
chevron_left chevron_right
New

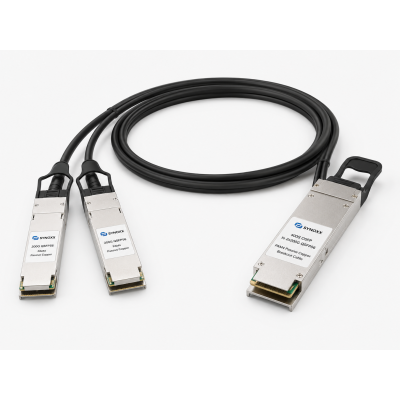

SYNOXX 400G QSFP-DD 400G PAM4 to 2x200G QSFP56 200G PAM4 Passive Copper Breakout Cable

The SYNOXX EDQD400-2QPx is a high-speed 400G QSFP-DD to 2x200G QSFP56 Direct Attach Copper breakout cable designed for short-distance, high-bandwidth network connections. It supports 400Gbps aggregate data rate using PAM4 signaling, making it suitable for data centers, high-performance computing, storage networks, telecom, and switch-to-switch interconnections.

US$207.00 Tax excluded

US$207.00 Tax excluded

Be sure to check availability date
check In stock
US/Canada
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

The SYNOXX EDQD400-2QPx is a passive copper breakout cable assembly that connects one 400G QSFP-DD port to two 200G QSFP56 ports. It is designed for high-speed networking environments where a single 400G interface needs to be split into two separate 200G links.

This cable uses PAM4 signaling and optimized copper construction to help reduce insertion loss and crosstalk. It also features a pull-to-release slide latch design, customizable EEPROM mapping, and cable braid termination to help limit EMI radiation.

The EDQD400-2QPx is a strong choice for modern data centers, AI/HPC environments, storage networks, cloud infrastructure, and high-speed aggregation links.

Key Features

  • 400G QSFP-DD to 2x200G QSFP56 breakout DAC cable
  • Supports 400Gbps aggregate data rate
  • Uses PAM4 signaling
  • Passive copper direct attach cable
  • Compatible with IEEE 802.3bj and IEEE 802.3cd
  • Optimized construction for low insertion loss and low crosstalk
  • Pull-to-release slide latch design
  • 28AWG and 30AWG cable options
  • Straight and breakout assembly configurations available
  • Customizable EEPROM mapping for cable signature
  • Cable braid termination helps reduce EMI radiation
  • RoHS compliant
  • REACH compliant

Applications

  • Data center networks
  • Switches, servers, and routers
  • Storage area networks
  • High-performance computing
  • Telecom and wireless infrastructure
  • Medical diagnostics and networking
  • Test and measurement equipment
  • 400G to 200G switch aggregation
Synoxx
EDQD400-2QPx
20 Items
Product code
EDQD400-2QPx
Max Power consumption
3.3V
Connector
400G QSFP-DD to 2x 200G QSFP56
Data Rate
400G (2x200G)
Standards
IEEE 802.3cd, IEEE 802.3bj
Operating temperature
0°C to +70°C
Cable Type
Passive Copper DAC
Max Aggregate Data Rate
400Gbps
Channel Speed
Up to 56Gbps PAM4 per channel
Cable Gauge
28AWG / 30AWG
Compliance
RoHS
Main Connector
400G QSFP-DD
Breakout Connectors
2x 200G QSFP56
Lengths
3M
