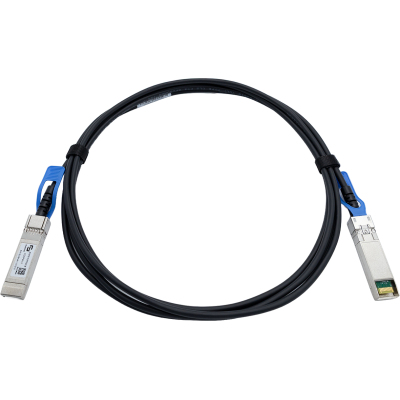

SYNOXX 50G SFP56 DAC Cable EDSP5X - 3m
The SYNOXX EDSP5X-3 is a 56G SFP56 to SFP56 passive Direct Attach Copper (DAC) cable designed for high-speed short-distance network connections. Supporting data rates up to 56 Gbps over a 3-metre twinax copper cable, it is ideal for server-to-switch, storage, leaf-to-server, and adjacent-rack connections. The cable uses PAM4 signaling, supports hot-pluggable SFP56 interfaces, and provides a low-power, low-latency, cost-effective alternative to optical transceivers for short-reach 56G Ethernet deployments.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The SYNOXX EDSP5X-3 is a 56G SFP56 to SFP56 passive Direct Attach Copper cable designed for high-performance short-reach networking applications.
Supporting data rates of up to 56 Gbps, the EDSP5X-3 uses PAM4 signaling to provide high-speed connectivity between compatible SFP56-equipped switches, servers, storage systems, and other networking hardware.
The 3-metre version uses 26 AWG twinax copper cable and is suitable for adjacent-rack connections, server-to-switch links, storage networking, and high-density data center environments where additional cable reach is required.
Because the cable is fully passive, it does not require active optical components, helping reduce overall system power consumption, cost, and complexity. The manufacturer describes the design as optimized for signal integrity, low EMI, and low total system power.
The EDSP5X series is compatible with IEEE 802.3bj, IEEE 802.3cd, SFF-8402, and SFF-8432, and supports an operating temperature range of 0°C to 70°C. It is also RoHS and REACH compliant.
Key Features
Up to 56 Gbps data rate
SFP56 to SFP56 connection
3-metre cable length
Passive Direct Attach Copper design
PAM4 signaling
26 AWG cable for 3 m version
Hot-pluggable SFP 20-pin footprint
Up to 3 m transmission distance
IEEE 802.3bj compatible
IEEE 802.3cd compatible
SFF-8402 compatible
SFF-8432 compatible
Improved Pluggable Form Factor compliant
Operating temperature: 0°C to 70°C
RoHS compliant
REACH compliant
Low power consumption
Optimized for signal integrity
Designed for low EMI
Applications
56G Ethernet
Data centers
Server-to-switch connections
Leaf-to-server links
Storage networking
High-density switch environments
Adjacent-rack connections
Enterprise networks
High-performance computing
Short-reach network interconnects
- Product code
- EDSP5X-3
- Connector
- SFP56 to SFP56
- Data Rate
- 50G
- Standards
- SFP56 MSA
