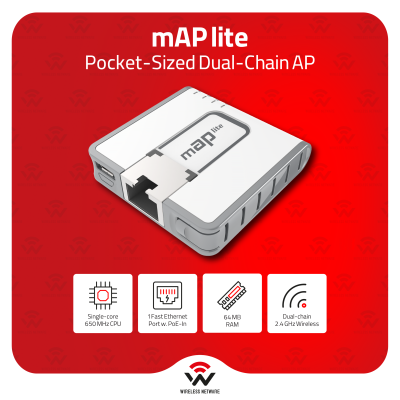

MikroTik mAP lite 2.4GHz Dual-Chain Micro AP PoE Travel Router
The MikroTik mAP lite (RBmAPL-2nD) is MikroTik's smallest wireless access point — barely larger than a matchbox at just 48 × 49 × 11 mm — yet it runs the full MikroTik RouterOS feature set on a dual-chain 2.4GHz 802.11b/g/n (Wi-Fi 4) radio. Designed for portability and versatility, it can be powered via microUSB (5 V) or 802.3af/at PoE, consumes just 3.5 W, and is equally at home as a travel router, a hotel room Wi-Fi extender, a server configuration tool, or a discreet permanent access point installation. Running RouterOS with a QCA9533 processor at 650 MHz and 64 MB of RAM, the mAP lite delivers full networking capability in the smallest possible package — ideal for technicians, travellers, and network professionals who need RouterOS in their pocket.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik mAP lite takes the concept of the micro access point to its logical extreme. It is the smallest device in MikroTik's wireless lineup — a form factor so compact that MikroTik notes they had to design a special mini case just to house it. Despite this, it ships with the complete RouterOS operating system and all the networking capabilities that entails, making it far more than just a basic Wi-Fi repeater or consumer travel router.
Wireless Performance
The mAP lite uses the QCA9533 chip to deliver dual-chain 2.4GHz 802.11b/g/n (Wi-Fi 4) wireless with a maximum data rate of 300 Mbit/s and an integrated antenna with 1.5 dBi of gain. Receive sensitivity spans from -96 dBm at 1 Mbit/s to -71 dBm at MCS7, providing reliable connectivity for typical indoor short-range applications. The dual-chain design improves throughput and link stability compared to single-chain devices of similar size.
Processing & Storage
The unit is powered by a QCA9533 processor running at 650 MHz on the MIPSBE architecture, with 64 MB of RAM and 16 MB of FLASH storage. RouterOS is pre-installed and licensed — no additional software purchase is required. Despite the tiny hardware footprint, the full RouterOS feature set is available, including routing, bridging, firewall, QoS, VPN, hotspot, and wireless management, all configurable via WinBox, WebFig, or CLI.
Ethernet & Powering
A single 10/100 Fast Ethernet port handles data and PoE input. The mAP lite supports two power input methods: 802.3af/at PoE via the Ethernet port (10–60 V) and a microUSB port (5 V), making it compatible with standard phone chargers, power banks, and laptop USB ports — ideal for travel use. Maximum power consumption is an exceptionally low 3.5 W. Passive cooling keeps the unit completely silent.
Build & Form Factor
At just 48 × 49 × 11 mm, the mAP lite is one of the most discreet networking devices available. It is rated IP20 for indoor use with a tested operating temperature range of -30°C to 70°C. MTBF is approximately 100,000 hours at 25°C. The package includes a 5V 1A power adapter and a K-44 mount kit.
Use Cases
The mAP lite is described by MikroTik as ideal for use as a travel router to extend hotel internet to all your devices, or as a configuration tool for servers when no Ethernet is available on a laptop. It is equally well suited for permanent discreet access point installations, IoT network gateways, in-vehicle Wi-Fi, or any scenario where the smallest possible RouterOS-capable wireless device is needed.
Key Specifications at a Glance
- Product Code: RBmAPL-2nD
- Wireless Standard: 802.11b/g/n (Wi-Fi 4), 2.4GHz dual-chain
- Max Wireless Data Rate: 300 Mbit/s
- Antenna Gain: 1.5 dBi (integrated)
- Ethernet Ports: 1x 10/100 Fast Ethernet (PoE-In)
- PoE Input: 802.3af/at, 10–60 V (Ethernet); microUSB 5 V
- CPU: QCA9533, 650 MHz, MIPSBE architecture
- RAM: 64 MB
- Storage: 16 MB FLASH
- Operating System: RouterOS (pre-installed and licensed)
- Max Power Consumption: 3.5 W
- Weather Rating: IP20 (indoor)
- Operating Temperature: -30°C to 70°C
- Dimensions: 48 × 49 × 11 mm
- Cooling: Passive
- MTBF: ~100,000 hours at 25°C
- Certifications: CE, FCC, IC, EAC, RoHS
- Included: 5V 1A power adapter, K-44 mount kit
- Product code
- RBmAPL-2nD
- Architecture
- MIPSBE
- CPU
- QCA9533
- CPU core count
- 1
- CPU nominal frequency
- 650 MHz
- Operating System
- RouterOS
- Size of RAM
- 64 MB
- Storage size
- 16 MB
- Storage type
- FLASH
- Tested ambient temperature
- -30 + 70 C
- Number of DC inputs
- 2 (PoE-IN, MicroUSB)
- Max Power consumption
- 3.5
- Max power consumption without attachments
- 3.5W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 10-60 V
- 10/100 Ethernet ports
- 1
- Dimensions
- 48x49x11mm
- Wireless 2.4 GHz number of chains
- 2
- Wireless 2.4 GHz standards
- 802.11b/g/n
- Antenna gain dBi for 2.4 GHz
- 1.5
- Wireless 2.4 GHz chip model
- QCA9533
- MicroUSB input Voltage
- 5-5 V
