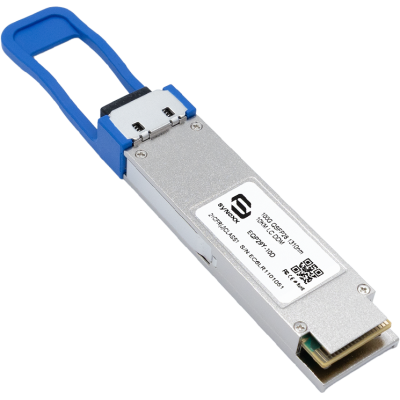

SYNOXX 100G QSFP28 LR4 Transceiver EQP29Y-10D LC 10km
The SYNOXX EQP29Y-10D is a 100G QSFP28 LR4 optical transceiver delivering 100Gbps
transmission over single-mode fiber up to 10km using four LAN Wavelength Division
Multiplexing (LWDM) channels around 1310nm — a standard LC duplex interface
enabling long-reach 100G data centre interconnects, inter-building campus links,
and metro-edge telecom connections without MPO ribbon fiber infrastructure.
Compliant with QSFP28 MSA and IEEE 802.3ba, featuring a CAUI-4 (4×25G) electrical
host interface, integrated Digital Diagnostic Monitoring (DDM) for real-time
temperature, voltage, TX/RX power, and bias current monitoring, and low power
consumption. Hot-pluggable, RoHS compliant, and IC Certified.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The SYNOXX EQP29Y-10D is a 100G QSFP28 LR4 optical transceiver engineered for 100Gbps long-reach transmission over single-mode fiber up to 10km. Operating across four LAN Wavelength Division Multiplexing (LWDM) channels centred around 1310nm — at wavelengths 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm — the EQP29Y-10D multiplexes four independent 25G optical lanes onto a single duplex LC fibre pair, enabling 100G throughput over standard OS2 single-mode fiber with a familiar LC duplex connector. This makes it the standard 100G transceiver for inter-building data centre interconnects, long-reach campus backbone links, and metro-edge telecom applications where OS2 SMF is already deployed and MPO ribbon fiber is not available or required.
Compliant with QSFP28 MSA and IEEE 802.3ba standards, the EQP29Y-10D features a CAUI-4 (4×25G) electrical host interface for seamless integration with 100G switch ASICs and line cards, integrated Digital Diagnostic Monitoring (DDM) for real-time visibility into temperature, voltage, TX/RX optical power, and bias current, and low power consumption across the full 10km operating range. Fully hot-pluggable in the standard QSFP28 form factor with an LC duplex connector, it delivers broad cross-vendor compatibility across all QSFP28 LR4-capable 100G switching, routing, and server platforms.
IC Certified by Industry Canada (ISED), the EQP29Y-10D meets regulatory requirements for commercial deployment.
- Product code
- EQP29Y-10D
- Tested ambient temperature
- 0°C to 70°C
- Connector
- LC
- Data Rate
- 100G
- Distance
- 10km
- Wavelength
- 1310nm
- DDM
- Yes
