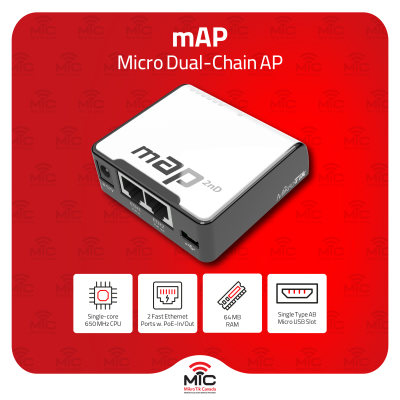

MikroTik mAP 2.4GHz Micro Access Point Dual-Chain PoE Out Wi-Fi 4
The MikroTik mAP (RBmAP2nD) is a tiny, full-featured 2.4GHz wireless access point that packs dual-chain 802.11b/g/n (Wi-Fi 4) wireless, two Ethernet ports, PoE output, and the complete MikroTik RouterOS feature set into an extremely compact 68 × 68 × 19 mm housing. Designed for discreet indoor installations where space is at a premium, the mAP supports three power input options — DC jack, 802.3af/at PoE, or microUSB — and can pass passive PoE through to a connected device on Ethernet port 2. Running RouterOS with a QCA9531 processor at 650 MHz and 64 MB of RAM, the mAP is well suited for hotel rooms, vehicles, small offices, or any location where a lightweight, versatile, low-power access point is needed.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik mAP (micro Access Point) lives up to its name — it is one of the smallest RouterOS-powered wireless units in the MikroTik range, yet despite its miniature footprint it delivers a complete and fully configurable networking platform. Its combination of compact size, flexible powering, PoE output, and RouterOS makes it a uniquely versatile device for a wide range of deployment scenarios.
Wireless Performance
The mAP uses the QCA9531 chip to deliver dual-chain 2.4GHz 802.11b/g/n (Wi-Fi 4) wireless with a maximum data rate of 300 Mbit/s. The integrated antenna provides 1.2 dBi of gain. Receive sensitivity spans from -96 dBm at 1 Mbit/s to -71 dBm at MCS7, providing reliable connectivity for typical indoor ranges. The dual-chain design improves both throughput and link stability compared to single-chain alternatives.
Processing & Storage
The unit is powered by a QCA9531 processor running at 650 MHz on the MIPSBE architecture, with an integrated QCA9531-BL3A-R switch chip. RAM is 64 MB and storage is 16 MB FLASH. RouterOS is pre-installed and licensed — no additional software purchase is required. The full RouterOS feature set is available including routing, bridging, firewall, QoS, VPN, hotspot, and wireless management, all accessible via WinBox, WebFig, or CLI.
Ethernet & PoE
The mAP has two 10/100 Fast Ethernet ports. Ethernet port 2 supports passive PoE output at up to 0.5 A, allowing a downstream device such as a small camera or sensor to be powered directly from the mAP without a separate PoE injector. This makes the mAP a convenient single-cable solution for installations where both data and power need to be delivered to a connected device.
Flexible Powering
The mAP supports three separate power input methods: an 802.3af/at PoE input via the Ethernet port (12–57 V), a DC jack (8–57 V), and a microUSB port (5 V) — providing exceptional flexibility for installations in vehicles, hotel rooms, or other locations where specific power sources may be available. Maximum power consumption is just 5 W. Passive cooling keeps the unit silent and maintenance-free.
USB Peripheral Support
A microUSB Type AB port is included, supporting USB Power Reset. This can be used for attaching compatible USB peripherals or for powering the device.
Build & Installation
The mAP measures just 68 × 68 × 19 mm, making it one of the most discreet access points in the MikroTik lineup. It is designed for indoor use with a tested ambient temperature range of -20°C to 70°C. MTBF is approximately 100,000 hours at 25°C. On-board PCB temperature and voltage monitors provide health monitoring. The package includes a K-33 mounting kit, a 24V 0.8A power adapter, and a USB OTG cable.
Use Cases
The mAP is ideal for hotel room Wi-Fi deployments, in-vehicle wireless access points, small office or home office setups, IoT gateway installations, and any location where a tiny, low-power, dual-chain 2.4GHz access point with full RouterOS capabilities is needed. Its PoE output makes it particularly useful in scenarios where powering a secondary device from the same unit is desirable.
Key Specifications at a Glance
- Product Code: RBmAP2nD
- Wireless Standard: 802.11b/g/n (Wi-Fi 4), 2.4GHz dual-chain
- Max Wireless Data Rate: 300 Mbit/s
- Antenna Gain: 1.2 dBi (integrated)
- Ethernet Ports: 2x 10/100 Fast Ethernet
- PoE Input: 802.3af/at, 12–57 V (Ethernet); DC jack 8–57 V; microUSB 5 V
- PoE Output: Ether2, passive PoE, up to 0.5 A
- CPU: QCA9531, 650 MHz, MIPSBE architecture
- Switch Chip: QCA9531-BL3A-R
- RAM: 64 MB
- Storage: 16 MB FLASH
- Operating System: RouterOS (pre-installed and licensed)
- USB: 1x microUSB Type AB with Power Reset
- Max Power Consumption: 5 W
- Operating Temperature: -20°C to 70°C
- Dimensions: 68 × 68 × 19 mm
- Cooling: Passive
- MTBF: ~100,000 hours at 25°C
- Certifications: FCC, IC
- Included: K-33 mounting kit, 24V 0.8A power adapter, USB OTG cable
- Product code
- RBmAP2nD
- Architecture
- MIPSBE
- CPU
- QCA9531
- CPU core count
- 1
- CPU nominal frequency
- 650 MHz
- Operating System
- RouterOS
- Size of RAM
- 64 MB
- Storage size
- 16 MB
- Storage type
- FLASH
- Tested ambient temperature
- -10C to +70C tested
- Number of DC inputs
- 3 (DC jack, MicroUSB, PoE-IN)
- DC jack input Voltage
- 8-57 V
- Max Power consumption
- 5
- Max power consumption without attachments
- 5W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 12-57 V
- PoE out
- Passive PoE
- Max out per port output - input (less than 30 V)
- 0.5 A
- Max out per port output (input more than 30 V)
- 0 mA
- Max total out (A)
- 0.5 A
- 10/100 Ethernet ports
- 2
- Dimensions
- 68x68x19mm
- Number of USB ports
- 1
- USB Power Reset
- Yes
- USB slot type
- microUSB type AB
- Max USB current (A)
- 1
- Voltage Monitor
- Yes
- PCB temperature monitor
- Yes
- Wireless 2.4 GHz number of chains
- 2
- Wireless 2.4 GHz standards
- 802.11b/g/n
- Antenna gain dBi for 2.4 GHz
- 1.2
- Wireless 2.4 GHz chip model
- QCA9531
- MicroUSB input Voltage
- 5-5 V
