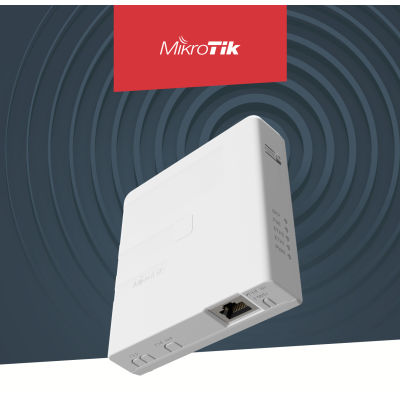

MikroTik GPEN21 Smart PoE Injector SFP Repeater
The MikroTik GPEN21 is a smart power injector and software-controlled Ethernet repeater — Marvell 88E6341 switch chip, SwitchOS Lite, 2× GbE (Ether1 data-in + Ether2 passive PoE-out up to 57V) + 1× SFP port for fiber uplink, dual power input (DC jack 12–57V + 802.3af/at PoE-in), 30W max / 3W without attachments, mode button, passive cooling, IP20, -20°C to +70°C, MTBF ~100,000 hours at 25°C. CE, EAC, RoHS — no FCC, no IC. Wall or cabinet mountable. Includes K-62 kit. Free software updates for life of product or minimum 5 years from purchase.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik GPEN21 is a smart power injector and software-controlled repeater — 2× GbE plus a 1× SFP fiber port, passive PoE-out on Ether2, dual power input, and SwitchOS Lite software features in a wall or cabinet-mountable IP20 enclosure.
**Software-controlled repeater — beyond a passive PoE injector**
The GPEN21 runs SwitchOS Lite and adds active intelligence to the last-mile link: interface management and monitoring, GPEN link fault detection, VLAN support, SNMP reporting, and basic traffic shaping. This makes it a managed network node, not a dumb pass-through injector — faults and traffic anomalies are visible and reportable without on-site inspection.
**SFP port — fiber or copper SFP uplink to provider**
The SFP port allows the GPEN21 to terminate a fiber uplink directly — power an optical SFP module for fiber-to-the-building connections, or use a copper SFP for flexible uplink topology. MikroTik's own framing: customers can use GPEN21 to power an optical module for uplink to provider, or to provide PoE to power an Ethernet uplink via GPeR and netPower products.
**Passive PoE-out on Ether2 — up to 57V, 850 mA**
Ether2 delivers passive PoE-out at up to 57V — 850 mA at low voltage, 625 mA at high voltage. Powers downstream MikroTik devices including GPeR repeaters, wAP APs, and netPower switches directly over Ethernet.
**Dual power input — DC jack or 802.3af/at PoE-in**
DC jack accepts 12–57V. PoE-in accepts 802.3af/at or passive 12–57V. 30W max total, 3W without attachments.
**Canadian market note:** CE, EAC, RoHS only — no FCC, no IC. Wired device, no wireless transmitter — no ISED wireless type approval required.
- Product code
- GPEN21
- Tested ambient temperature
- -20°C to +70°C tested
- Number of DC inputs
- 1 (DC jack)
2 - DC jack input Voltage
- 12-57 V
- PoE in input Voltage
- 12-57 V, 802.3af/at
- PoE out
- Yes, Passive PoE up to 57 V
- 10/100/1000 Ethernet ports
- 2
- Dimensions
- 92 x 104 x 24 mm
- SFP ports
- 1
- Operating Temperature
- -40..+70C
