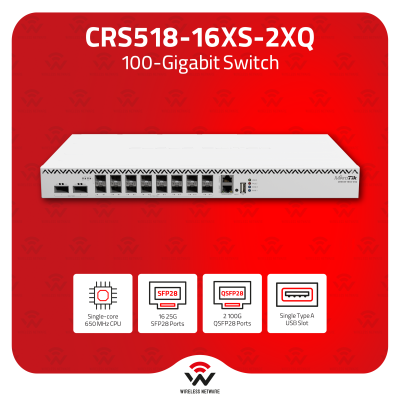

MikroTik CRS518-16XS-2XQ 16×25G SFP28 100G Switch
The MikroTik CRS518-16XS-2XQ-RM is a 1U rack enterprise switch — Marvell 98DX8525 Prestera Aldrin2 switch ASIC, QCA9531 management CPU (MIPSBE, 650 MHz), 64 MB RAM, 16 MB FLASH, RouterOS v7 License 6, 16× SFP28 (25G, backward compatible 10G/1G), 2× QSFP28 (100G), 1× 10/100 Ethernet (management), RJ45 serial console, USB-A 1A, 2× hot-swap AC PSUs (100–240V), 4× hot-swap fans, 95W max / 45W without attachments, 1.2 Tbps switching capacity, IP20, -40°C to +70°C, MTBF ~200,000 hours at 25°C. CE, EAC, RoHS — no FCC, no IC. Includes rack ears, 2× IEC cord, K-54 kit. USD 1,595.00.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik CRS518-16XS-2XQ-RM is MikroTik's highest-density 100G rack switch — 16× SFP28 (25G) + 2× QSFP28 (100G), 1.2 Tbps switching capacity, dual redundant hot-swap PSUs and fans, and the Marvell 98DX8525 Prestera Aldrin2 ASIC in a 1U rack enclosure at USD 1,595.00. It is the correct switch when the CRS504's 4× QSFP28 port count is insufficient and a distribution-layer switch serving multiple access-layer devices at 25G is the requirement.
**Marvell 98DX8525 Prestera Aldrin2 — the same ASIC as the CCR2216**
The 98DX8525 is the identical switch ASIC documented for the CCR2216 in this product batch — Marvell's Prestera Aldrin2, purpose-built for enterprise and data centre switching at 25G/100G port densities. Hardware-offloaded Layer 2 switching across all 18 ports simultaneously at line rate: VLAN (802.1Q and 802.1ad QinQ), MAC address table forwarding, STP/RSTP, LACP 802.3ad, MLAG (Multi-chassis LAG), IGMP/MLD snooping, ACL, QoS, and jumbo frame support — all processed in the ASIC without involving the QCA9531 management CPU in the data path. L3 hardware-offloaded routing: inter-VLAN routing flows established in hardware at line rate — the same Aldrin2 L3 offload capability MikroTik highlights for the CCR2216.
**16× SFP28 — 25G with full backward compatibility**
All 16 SFP28 ports operate at 25G natively and are backward compatible with 10G SFP+ transceivers and 1G SFP transceivers — mix and match across generations within the same switch. For a data centre or enterprise campus migrating from 10G to 25G access layer infrastructure, the CRS518 accepts existing 10G SFP+ transceivers in any port during the transition, replaced with 25G SFP28 transceivers as 25G-capable endpoints are deployed. The full 16-port 25G capacity provides 400 Gbps aggregate access-layer bandwidth feeding the two 100G QSFP28 uplinks.
**2× QSFP28 100G uplinks — to CCR2216 or CRS504**
The two QSFP28 ports connect the CRS518 to upstream 100G routing or switching — a CCR2216 pair for core routing, a CRS504-4XQ-OUT for outdoor aggregation, or a second CRS518 for inter-distribution redundancy. Compatible transceivers from this session: XQ+31LC10D (10km SMF, Dual LC) and XQ+85MP01D (100m multimode, MTP/MPO-12). LACP bonding of both QSFP28 ports provides 200G aggregate uplink bandwidth.
**Dual redundant hot-swap PSUs and fans — enterprise availability**
Two hot-swap AC PSUs (100–240V, 47–63 Hz) in two PSU slots — PSU failure causes zero downtime, the failed unit is replaced while the switch continues operating on the remaining PSU. Four hot-swap fans provide active cooling for the 95W max thermal load — fan failure is similarly non-disruptive. MikroTik's framing is direct: "dual-redundant hot-swappable power supplies and fans — you won't have to worry about unnecessary downtime." For an enterprise distribution switch in a production data centre or ISP PoP where scheduled maintenance windows are rare, hot-swap redundancy is the operational requirement that separates the CRS518 from the passively cooled CRS504 and CRS510.
**RouterOS v7 License 6 — the full enterprise feature set**
License 6 provides unlimited routing protocol instances — unlimited BGP peers, OSPF areas, and VRF instances — alongside the complete RouterOS v7 feature set: WireGuard, IPsec, firewall, SNMP, scripting, and container support. For a distribution switch in an ISP or enterprise network running BGP with multiple upstream peers or inter-VLAN routing across many VRFs, License 6 removes all protocol instance constraints.
**5-year software support guarantee:** RouterOS v7 updates free for life of product or minimum 5 years from date of purchase.
**Canadian market note:** CE, EAC, RoHS only — no FCC, no IC (ISED) published. Wired switch, no wireless transmitter — no ISED wireless advisory applies. Confirm CSA/cUL electrical safety requirements with distributor before listing.
Key specifications:
- **Product code:** CRS518-16XS-2XQ-RM
- **Switch ASIC:** Marvell 98DX8525 Prestera Aldrin2
- **Management CPU:** QCA9531, single-core MIPSBE, 650 MHz
- **RAM / Storage:** 64 MB / 16 MB FLASH
- **OS:** RouterOS v7, License 6
- **SFP28 ports (25G):** 16× (backward compatible 10G/1G)
- **QSFP28 ports (100G):** 2×
- **10/100 Ethernet (management):** 1×
- **Serial console:** RJ45
- **USB:** 1× USB-A, 1A, USB Power Reset
- **PSUs:** 2× hot-swap, AC 100–240V, 47–63 Hz
- **PSU slots:** 2×
- **Fans:** 4× hot-swap
- **Max power:** 95W (45W without attachments)
- **Switching capacity:** 1.2 Tbps
- **Cooling:** 4× active fans (hot-swap)
- **IP rating:** IP20
- **Operating temp:** -40°C to +70°C
- **MTBF:** ~200,000 hours at 25°C
- **Certifications:** CE, EAC, RoHS — no FCC, no IC
- **Included:** Rack ears, 2× IEC cord, K-54 kit
- **Suggested price:** USD 1,595.00
- Product code
- CRS518-16XS-2XQ-RM
- Architecture
- MIPSBE
- CPU core count
- 16
- CPU nominal frequency
- 650 MHz
- RouterOS License
- RouterOS L6
- Size of RAM
- 64 MB
- Storage size
- 128 MB
- Storage type
- NAND
- Tested ambient temperature
- -20°C to 60°C
- Max Power consumption
- 128 W
- Max power consumption without attachments
- 80 W
- 10/100/1000 Ethernet ports
- 1
- Number of AC inputs
- 2
- AC input range
- 100-240
- CPU temperature monitor
- YES
- Voltage Monitor
- YES
- PCB temperature monitor
- YES
- M.2 slots
- 2
- Certification
- CE, EAC, ROHS
- RAM type
- DDR2
- Number of 25G SFP28 ports
- 12
- Number of 100G QSFP28 ports
- 2
