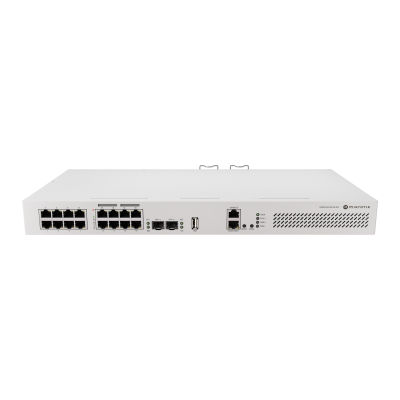

MikroTik CRS418-8P-8G-2S+RM Rackmount PoE Switch 1U
The MikroTik CRS418-8P-8G-2S+RM is the wireless-free 1U rackmount edition of the CRS418 platform — all the switching, routing, PoE, and 10G uplink capability of the CRS418 series without the Wi-Fi 6 radio, at USD 449. It combines 16× Gigabit Ethernet ports (8 with 802.3af/at PoE-out), a dedicated Gigabit management port, 2× 10G SFP+ uplinks, the quad-core IPQ-8072A 2.2 GHz ARM64 CPU with L3 hardware offloading, 1 GB RAM, dual redundant AC power supplies, USB 3.0, and RouterOS v7 License Level 5 — a clean, no-compromise rackmount switch-router for environments where Wi-Fi is handled separately or not needed at all.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik CRS418-8P-8G-2S+RM is built on the same foundation as the CRS418-8P-8G-2S+WiFi — same quad-core CPU, same switch chip, same port mix, same dual redundant PSUs — with one deliberate difference: no Wi-Fi radio. For network environments where wireless is already covered by dedicated access points, a ceiling-mount CAPsMAN deployment, or an upstream wireless controller, paying for an integrated radio you will never use makes no sense. The CRS418-8P-8G-2S+RM strips that out and passes the savings directly to USD 449.
What remains is a formidable 1U rackmount platform. The quad-core IPQ-8072A ARM64 CPU at 2.2 GHz, paired with 1 GB RAM and the 98DX226S switch chip with L3 hardware offloading, provides the processing power to run as an internet gateway, full RouterOS firewall, VLAN router, and CAPsMAN controller simultaneously — approximately 3× faster than the CRS320 or CRS328 at a comparable or lower price.
The 8× PoE-out ports (Ether9–Ether16) with 802.3af/at and 24V Passive PoE-out support up to 150W total PoE budget — enough to power access points, IP cameras, VoIP phones, and IoT devices directly from the switch. The 2× 10G SFP+ uplinks handle ISP fiber hand-off, core switch connectivity, and high-speed NAS links without a bottleneck. The dedicated Gigabit management port with direct CPU line keeps out-of-band management clean and available regardless of data plane load.
Key features:
- 16× 10/100/1000 Mbps Gigabit Ethernet ports + 1× dedicated Gigabit management port (17 total)
- 8× PoE-out ports (Ether9–Ether16) — 802.3af/at and 24V Passive PoE-out, 150W total PoE budget, low-voltage limit 1.1A / high-voltage limit 0.56A, max 5.4A total
- 2× 10G SFP+ uplink cages — fiber ISP hand-off, core switch uplinks, high-speed NAS
- L3 hardware offloading — wire-speed routing between VLANs without CPU overhead
- Quad-core IPQ-8072A ARM 64-bit CPU, 2,208 MHz, 1 GB RAM, 128 MB NAND
- 98DX226S switch chip
- Dual redundant AC power inputs (100–240V, 50–60 Hz), 2 PSU slots
- 4-fan active cooling, -20°C to +70°C
- Max power consumption 215W (28W without attachments)
- 1× USB 3.0 Type-A port (up to 1A) with USB Power Reset — storage, backups, configuration
- RJ45 serial console port for out-of-band management
- CPU temperature, PCB temperature, current, and voltage monitoring
- Mode button
- RouterOS v7, License Level 5 — VLANs, ACLs, SNMP, firewall, CAPsMAN, traffic shaping, advanced monitoring — no subscriptions, no paywalls, free updates for life (minimum 5 years)
- Certified CE, EAC, RoHS | IP20
- MTBF ~200,000 hours at 25°C
In the box: 2× IEC cords, K-54 kit, rack ears.
Ideal for: small and medium offices that already use dedicated access points or a CAPsMAN deployment; server rooms and network closets replacing a stack of switch, router, and firewall appliances with a single 1U device; WISPs and ISPs needing a managed PoE switch with 10G uplinks and full RouterOS routing; homelabs and network labs; and any deployment where Wi-Fi is handled externally and the priority is maximum switching, routing, and PoE capability per rack unit at the best price.
- Product code
- CRS418-8P-8G-2S+RM
- CPU architecture
- ARM 64bit
- CPU
- Quad-Core IPQ-8072 2208 MHz
- Switch chip model
- 98DX226S
- Operating System
- RouterOS v7, License level 5
- Size of RAM
- 1 GB, DDR3L
- Storage size
- 128 MB, NAND
- Max Power consumption
- 215 W
- Max power consumption without attachments
- 28 W
- PoE out ports
- Ether9 - Ether16
- PoE out
- 802.3af/at
- Max total out (A)
- 5.4 A
- Total output power
- 150 W
- Dimensions
- 443 x 230 x 44
- Number of AC inputs
- 2
- AC input range
- 100-240 V
- Number of USB ports
- 1 USB 3.0 type A
- Operating Temperature
- -20°C to +70°C
- Number of 10G SFP+ ports
- 2
- Number of 1G Ethernet ports
- 17
- Max out per port output (input below 30 V)
- 1.1 A
- Max out per port output (input above 30 V)
- 0.55 A
